Morgenthau Guest House

Jeremy Levine of Jeremy Levine Design sent me this unique shed conversion which he recently completed in Silver Lake, California.

An existing 250 sq.ft. storage shed was transformed into a guest house with a kitchenette and bath. A large tilted redwood clad wall, made from recycled cuts, slices through the house dividing the main room from the kitchenette and bath spaces. The tilted wall ‘folds’ and becomes the deck, which sweeps out into the adjacent garden to connect the house to the landscape.

img_2579_2_sm

Palm trees grow through openings in the deck to further the literal and figural linkage between house and garden. The titled redwood wall functions as a lighting instrument for both day and night, interior and exterior.

During the day, the redwood wall bounces sun from the long narrow skylight and vertical slits into the house.

At night, strips of translucent polycarbonate, stitched into the wood siding, glow from the concealed fluorescents hidden inside the tilted wall. The glowing translucent strips on the exterior part of the tilted wall cast light onto the surrounding gardens.

Here are the Specs:

  1. Roofing – composite asphalt,
  2. External walls -recycled redwood siding, Polycarbonate, smooth trowel stucco
  3. Internal walls -gyp, recycled redwood siding and polycarbonate on the tilted angled wall, corrugated metal in bathroom
  4. Structure – 2”x8” Doug Fir tilted wall
  5. Doors -aluminum sliding glass
  6. Windows -TM Cobb, dual glazed, low e, casement
  7. Flooring -24” sq. ‘Chinese Black’ slate tile
  8. Lighting -Ikea, Artimide
  9. Kitchen -poured in place concrete sink
  10. Bathroom -poured in place concrete vanity and shower

To view more of Jeremy’s work visit the Jeremy Levine Design website.

Storage Shed Before Transformation

Storage Shed Before Transformation

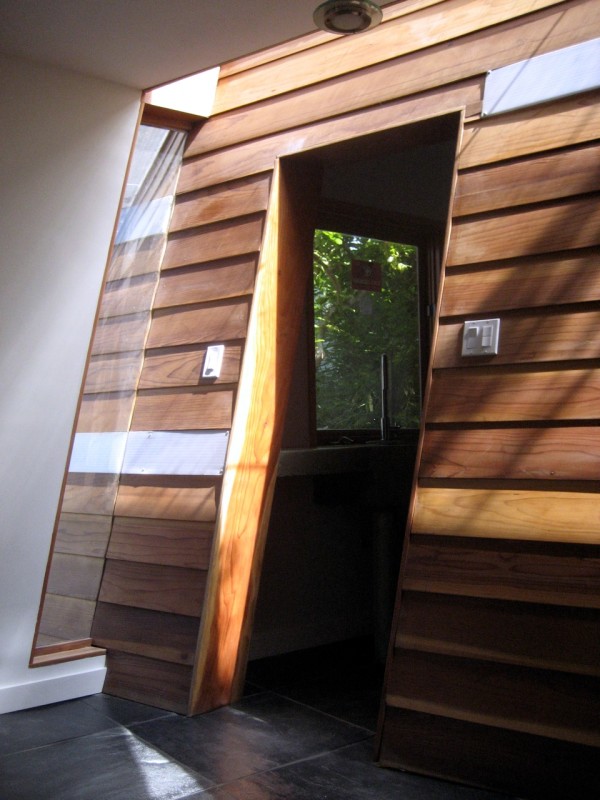

Special and Unique Wall

Special and Unique Wall

Bathroom

Bathroom

Living Area

Living Area

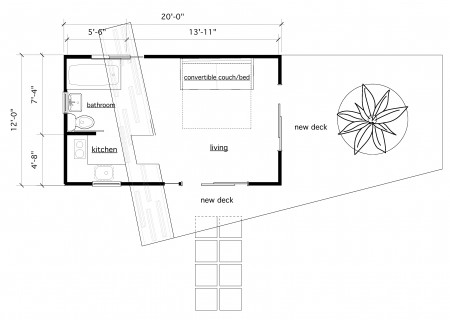

Floor Plan

Floor Plan

If you enjoyed this post, subscribe to our feed

Join Our eMail List and download the Tiny House Directory

Simply enter your name and email below to learn more about tiny houses and stay up to date with the movement.

Click Here to Leave a Comment Below

seth - January 27, 2009 Reply

Wow. I love projects like Jeremy’s. Great stuff and GREEN too!! Another website to add to the favorites, thanks Kent.

Max - January 27, 2009 Reply

Very unique project. Elegant solution to converting a boring box into something amazing. The little shed is just a distant memory.

EJ - January 27, 2009 Reply

How much does something like this cost?
What makes it “green”?

Kent - January 27, 2009 Reply

Hi EJ – I have asked Jeremy to answer your questions, he will either respond here or to me. I’ll let you know one way or the other.

Jeremy - January 27, 2009 Reply

Great Questions. Here are some answers.

Cost of conversion was about $20,000.

The green elements:

1) Adaptive/Re-use is a form of recycling, where the existing structure is saved rather than torn down. Instead of carting off a ton of construction debris to a landfill we found a way to adapt and re-use the existing storage shed and turned it into a guest house.

2) Passive Daylighting: The tilted angled wall with it’s slit skylight, allows the interior of the house to be illuminated during the day by reflecting ambient light, lowering the need for artificial light.

3) Energy efficient fluorescent lighting. This sounds like an easy thing to implement for any building, but it is an aesthetic challenge. Fluorescent lighting is energy efficient, but its illumination is harsh and unflattering. Our solution was to conceal the low-energy fluorescent bulbs behind the polycarbonate slits in the redwood wall, which glow at night like a lantern.

4) The landscaping is all drought tolerant, xeriscaping, which uses native plants that require very little watering.

5) The kitchen countertops, the kitchen and bathroom sinks, and the bathroom shower are constructed of poured in place concrete with 50% recycled fly ash.

EJ - January 28, 2009 Reply

Thanks for the answers! Green is such an easy concept to throw around and often doesn’t mean much. I can see lots of thought went into this, it looks very good.

Scott - January 30, 2009 Reply

Very cool conversion. Love the special wall. The floorplan shows the single interior door leading into the small kitchen. The picture looks like it goes directly into the bath. Is it just the photo angle, or is the final set-up slightly different that the drawn floorplan? Is the roof flat, or does it sport a shallow pitch?

Great use of an existng building. Gives people inspiration to explore alternatives to new construction, a green element itself.

No - January 30, 2009 Reply

I am suprised the bathroom being next to the kitchen is legal? It would not meet building codes in the UK AFAIK.

Ella - June 28, 2009 Reply

This is a gorgeous home.. but i don’t like the tendency to place bathrooms so close to kitchens..

Maria Hars - October 21, 2013 Reply

I love it. I understand why the bathroom is next to the kitchen: it’s a plumbing issue and space saver. Most houses have half bathrooms next to the kitchen. It’s a simple contemporary layout using sustainable design/build principals. Kudos.
