Ty Niehaus’ Tiny House

tiny house
I have been following the tiny house movement since first reading about Jay Shafer over 10 years ago.  Of course, I loved the idea of saving on money and time and, thus, having more freedom.  In addition, I wanted to combine the benefits of a tiny house with the health benefits of building out of non-toxic materials.  Also, I felt it was important that it be beautiful and acceptable in (almost) any neighborhood. I decided to build an 8 X 12 design, but without porch or loft and with more windows and light.  This mobile house-room is meant to be an extra space or living area but without utilities except electricity.  In other words, toilet, kitchen, and shower are meant to be in a nearby building.
The final result looks like a small cabin or shed reminiscent of a red barn.  Drawings and extensive, invaluable consulting on non-toxic building came from George Swanson (geoswan.com) in Texas.  Additional consulting came from Katharina Gustavs–especially, on EMF issues–from Canada (buildingbiology.ca); Leslie Lawrence fromsafespotcottages.com; and even once with Jay Shafer.  I hired the expert team from the Center for Green Building/Measure for Measure in Connecticut (centerforgreenbuilding.com) and asked them to build with the following non-toxic elements:
  1. The trailer is a customized aluminum trailer by Featherlite–thanks to Scott Boyner for engineering exactly what I wanted.  The frame is aluminum–won’t magnetize or corrode–but the bed of the trailer was constructed using Timbersil–wood that is infused with sodium silicate (glass) and won’t burn, rot, mold, or be eaten by insects.  The underside of the trailer also was covered over with a layer of Tyvek with chicken wire over that.
  2.  Conventional wood frame is all treated with three coats of potassium silicate by Romabio.
  3. All interior and exterior floors and walls are made of Magnesium Oxide panels–also won’t burn, rot, mold and gives off no harmful gasses (but do wear protection when cutting, there is fiberglass mesh inside).  These were purchased from Holdfast Technologies in Ohio.  All exterior trim that could not be sized in Magnesium Oxide is Hardieboard, another cement board.
  4. All walls, ceiling, and floor are insulated with Ultra Touch recycled cotton insulation.
  5. All interior and exterior paint is supplied by Romabio (romabio.com)–truly non-toxic mineral paint that allows water vapor to escape and, thus, avoids conditions for mold.  (It turns out that many popular no-VOC paints still contain harmful irritants).
  6.  The roof is covered with two layers of Vaproshield–a polypropylene membrane that is also vapor permeable.  Over that we used Davinci synethetic roof slates–they are made of recycled plastic and really do look like real slates.

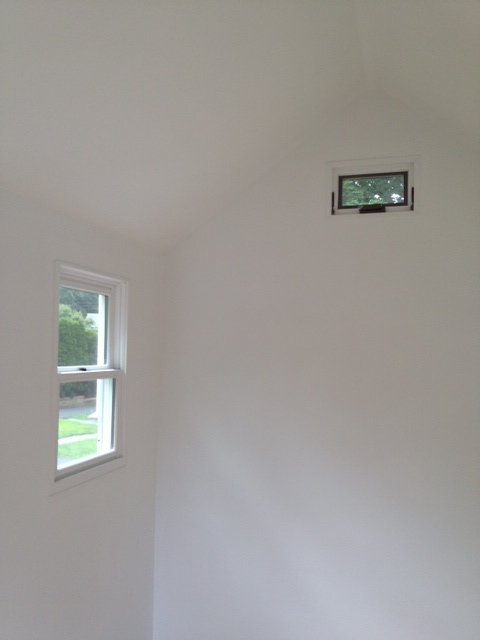

  7. Windows are Jeld-wen, unfinished pine with aluminum cladding.  We painted the interior pine with the same paint we used on the walls.
  8. Electricity enters at only one point and there are four sockets on the interior side there.  This is intended to minimize EMF issues.
  9. The finished floor is Ecotimber bamboo.

photo 3





photo 2 photo 11 photo 10 photo 9a photo 9 photo 8 photo 7 photo 6 photo 5

Join Our eMail List and download the Tiny House Directory

Simply enter your name and email below to learn more about tiny houses and stay up to date with the movement.

Click Here to Leave a Comment Below

Debra - July 30, 2014 Reply

Is this for sale?
Been looking for this idea in place, for an out of the house office room….

    Ty Niehaus - July 31, 2014 Reply

    Debra, I had not planned to sell it, but I would be happy to discuss it. Please send your contact info to Kent at THB to forward to me and we can explore further.

Lisa E. - July 30, 2014 Reply

As I was planning my TH, I was wondering about using bamboo instead of pine wood. Can you tell me where you got the Ecobamboo and what the cost is per foot?
Thank you. (Good article; I’m saving it.)

    Stan - July 30, 2014 Reply

    I looked in to bamboo for environmental reasons and found out that it uses tons of energy and chemicals to make the flooring that is comparable to wood so I decided against it. From what I read it was just better using wood, in the end it uses less power and produces less waste to make in the long run. Also, with a bamboo floor you’re ‘dirtying’ third world countries which I find unfair.

      Ty Niehaus - July 31, 2014 Reply

      Stan, I don’t know that all those points apply to the Ecotimber brand; but it is true that it was shipped from China.

      Dewy - July 31, 2014 Reply

      I wondered about bamboo. I want to use maple (good dance floor) & cherry trim, local grown & milled.

      Mags - August 1, 2014 Reply

      My sister in law had bamboo installed and it dented and scaped as badly as pine just from everyday use. If you really want a beautiful, relatively inexpensive, recycled floor, look at an end grain floor made from old beams.

    Ty Niehaus - July 31, 2014 Reply

    Lisa, I am glad you found this post helpful. I cannot recall the price for the Ecotimber, but I know I thought it was reasonable. I purchased it from the centerforgreenbuilding.com.

    Jamie - August 1, 2014 Reply

    I ordered samples one time for free and they sent me a large amount. If you had about 25 to 30 friends order samples you could do your whole floor with one version and have other versions to use some where else. If I remember right they sent me around 7 different versions and some are totaly natural. If you need some one to order a sample let me know. Also there is 4 companies that do this so it is just an idea,

Joyce - July 30, 2014 Reply

All of this eco stuff at what kind of pricing/cost? It is nice you can get something to fit your requirements and intended use.

Where did you get the roof slates? How well do they hold up when traveling? Resist hail?

    Ty Niehaus - July 31, 2014 Reply

    Joyce, I approximate the total for all materials and labor, including the more costly aluminum trailer, to be around 33,000. The slates from davinciroofscapes.com have held up beautifully thus far in all weather, including one trip on the highway. You may notice that they are spaced tightly to make the look proportional to the size of the house–with the added benefit of making them more secure.

Brian Dombrowski - July 30, 2014 Reply

How do I advertise on the Tiny House Blog and what are the rates?

Wendy - July 30, 2014 Reply

What was your final cost for it? Looks great- the only thing that would bother me are the one-point of electricity, which will probably result in extension cords being wrapped around everywhere for lighting, computer, hot plate, etc. I know you had a reason for it but I don’t understand exactly what that means. I just know from having rooms in older homes with electrical outlets on only one wall- it is pretty inconvenient in real life.

tom - July 30, 2014 Reply

Wow thats quite the exercise in avoidance. I do a similar thing except my method is to simply avoid materials that have a barcode.

I like the Board&Batten look, and the colors.

Darris - July 30, 2014 Reply

It’s beautiful! Love all of the eco-friendly materials you used. Love to see a follow up through the winter months on the efficiency of the insulation you used. Thanks so much!

Faith Freewoman - July 30, 2014 Reply

REALLY appreciate all the great information about non-toxic materials! My MCS is one of the big reasons I’m looking at tiny houses…aside from the fact that they’re a great idea in the first place, and who wouldn’t want to live well for way less? Thanks again for all you do.

Steve in Millcreek - July 30, 2014 Reply

I wish there was a better way to design around wheel wells. One idea is to extend axle outside the house, which adds base stability. But then, this effectively narrows the house. Another idea is to build-in a bench seat around each well. Other ideas?

    Karen - July 30, 2014 Reply

    We thought we would raise the whole floor above the wheel wells and and dormer out the roof in that area of our tiny house. The raised area is the kitchen and bath. We plan on putting in a cedar sleeve under the raised kitchen and foaming around the sleeve and sliding a frame that holds a queen size mattress under the kitchen. The area is foamed to prevent any critters, crumbs etc. from getting in the bed area. I believe that this will be a great place for guests.

Jan Radosevich - July 30, 2014 Reply

What is the intended use for your tiny?

    Ty Niehaus - July 31, 2014 Reply

    Jan, the current use is as an extra space but with the option to use in the future as a living space or as part of a group of small spaces. When I began the project, I did not know that I would find myself living with someone else!

Gilbert - July 30, 2014 Reply

Like the info.

ET - July 30, 2014 Reply

How do you dispose of materials that don’t “burn, rot, mold”?

    Ty Niehaus - July 31, 2014 Reply

    Jan, the current use is as an extra space but with the option to use in the future as a living space or as part of a group of small spaces. When I began the project, I did not know that I would find myself living with someone else!

    Ty Niehaus - July 31, 2014 Reply

    ET, that is a totally valid question. My understanding is that the majority of the product is Magnesium Oxide, the most abundant mineral on earth. As such, it may be able to return to the earth. However, it does also contain a fiberglass mesh inside, clearly a human-made waste product.

Doc - July 30, 2014 Reply

Like the home, needsxsome color and a little more power, EMF be damned! Seriously, if that’s your worry use solar 12 volt system.
Also love bamboo and for your purpose it works, but for those being green, its not at all. Yes it’s sustainable, but its not green due to the high carbon footprint left behind. It is harvested, shipped to port by truck, to the US on a huge fuel guzzeling ship (read: Gallons per mile not miles per gallon), to the end user by truck again. Much more green to choose locally sourced hardwoods in your area. Very green with todsysxfotedtry methods and keeps your money in your back yard!

    Daniel Lay - August 1, 2014 Reply

    RE: Bamboo- I’m not a mathematician, or an expert on environmentalism, which I find to be a bit self serving and self aggrandizing when one touts their accomplishments in that field, but I’m pretty sure that equating pounds per mile to gallons of fuel is rather silly, considering the weight of bamboo flooring. How many board feet of bamboo flooring do you think it takes to fill a whole container ship? Pretty sure there’s an economy of scale that negates the argument .Just MHO

Stan - July 30, 2014 Reply

This is cool, I wanted to do something like this to save money, i.e. leave out the loft, kitchen, and bathroom, to save money and then add it in later when I had the money. I was renting a room from friends and they would let me park a tiny house in their backyard for free so all I needed immediately was a room and still use their bathroom. I’m still looking into it.

If pictures are taken of how this space is used I’d love to see them!

David Remus - August 1, 2014 Reply

It’s a tiny shed. If you put in some folding chairs, folding table, folding cot, and a pot of coffee on a camp stove, it’s a Tiny House. 😉

Kathleen Benson - August 1, 2014 Reply

I am very impressed by the designs and would love to own one…what a cool concept!

Kathleen Benson - August 1, 2014 Reply

how very sweet of you to raise my awareness of posting twice. I guess that being rude is an acquired habit. one habit that I won’t partake in.

groot - August 4, 2014 Reply

Make no mistake, Aluminum DOES corrode. It doesn’t ‘rust’ like steel does. But it does corrode if exposed to weather. Ask anyone who works on aircraft airframes or aluminum boats. Corrosion Control is a big part of the job.

http://bit.ly/1qLW01I

Lisa - August 4, 2014 Reply

I love all the comments, the responses from you Ty, and as an environmentalist, all the attempts at being green and the added info input that everyone has done. It seems to me the best way to be truly green is to get as much materials that can be reused safely, locally. Windows, doors, lumber, flooring, cabinets, etc etc. Less off gassing, less to the landfill, less travel as long as we keep it local. Not always easy to find, but worth trying!! keep up the communication, we all need it as we embark on this fairly new journey.
