Quite of few of you have been asking about Scott Stewart and Slabtown Customs as I have not reported on Scott and his work in sometime and his website was taken down. Scott and his business is still going strong and I have an update here of many of his recent projects. In this post I have put together several galleries and a couple of movies of what Scott has been up to. Here they are:
The Linger Longer, a Park Model

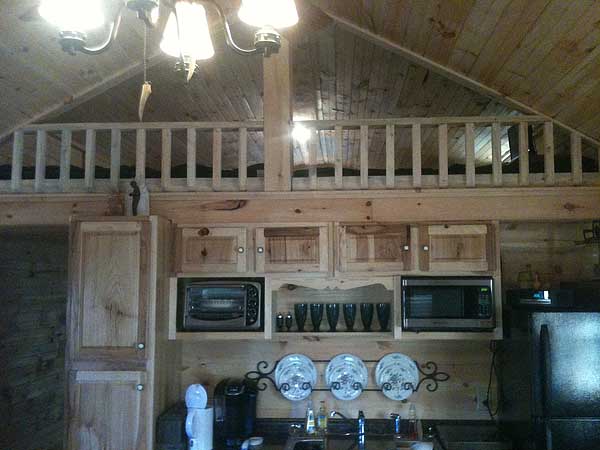

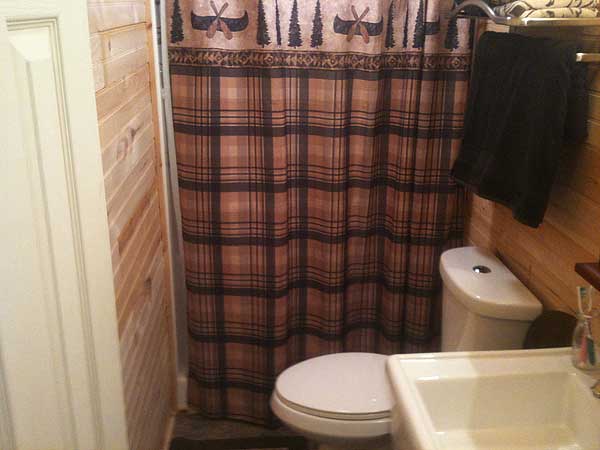

This custom unit is one of our park model builds, it is built perm. on a steel i beam frame with three axles and bumper style hitch (hitch is hidden under front steps) unit is 14′ wide and a total of 38′ long including a 6′ front covered porch with treated decking and vinyl porch posts and railings, layout includes bedroom in back large enough to accommodate a king size bed if needed, large closet, bathroom including a 4′ wide shower stall with seats, full size tall elongated dual flush toilet, sink/vanity, vent/light as well as vanity lights, high grade allure vinyl flooring in bathroom, kitchen includes hickory cabinets, full size fridge, induction cook top, toaster/convection oven, microwave, dual basin full size sink with custom cover that matches the counter top to cover one half of the sink to gain counter space if needed, cabinets include base, overhead and 7′ pantry. house is fully insulated wired and plumbed like a site built home with rv type connections to allow set up in an rv park, set up on 110v service, has two heat/air combo units, one in living area and one in bedroom, layout also includes two lofts, one 6′ storage loft over the front porch that has a custom installed stained glass window in the gable end that has a light behind it controlled by a switch next to the front door allowing the owners to light the stained glass at night for a very nice look, house also has a large sleeping loft in the back accessed by stairs between the bath and bedroom, this loft is the full 14′ wide and just over 17′ long creating lots and lots of added sleeping/reading room, the side walls of the house in the loft area are 10′ tall with a 7′ tall ceiling below the loft in the bedroom and bathroom to gain headroom in the loft, the loft has railings but is open looking down on the living area below.
The house has hardwood laminate flooring in a cherry color throughout including the large loft with carpet in the storage loft, living room includes a corner electric fireplace that is very realistic when turned on, it produces a lot of heat and is surrounded by cultured stone, TV is mounted above fireplace.

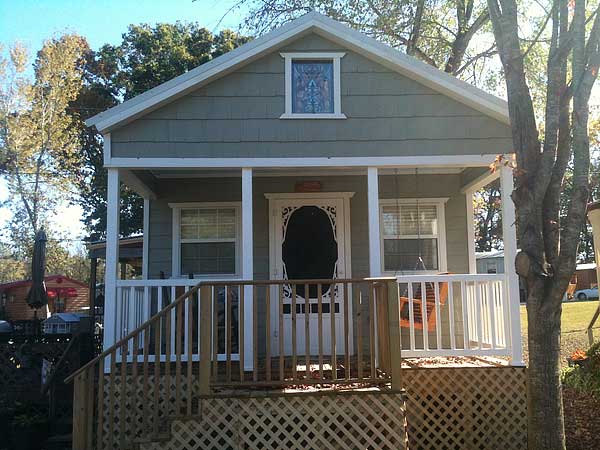

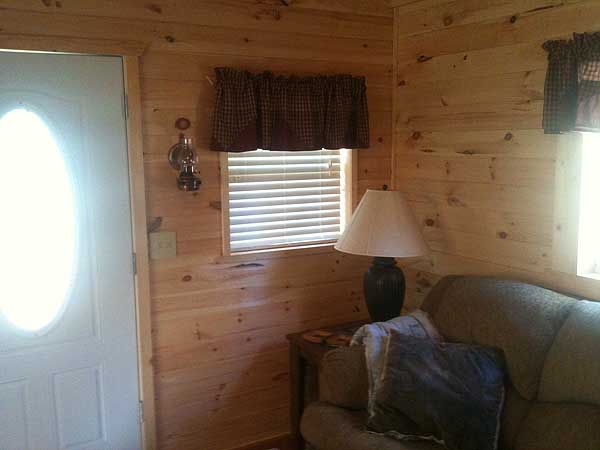

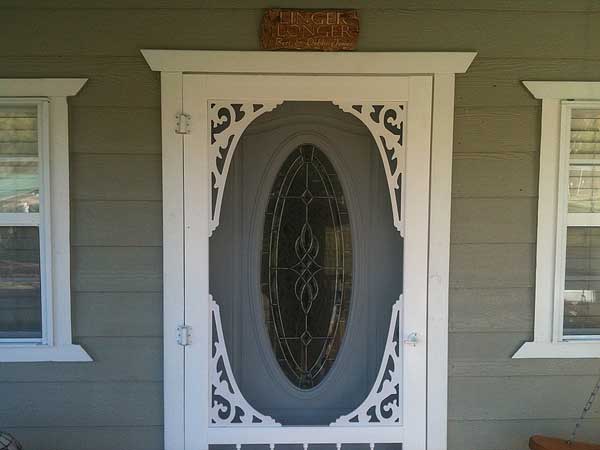

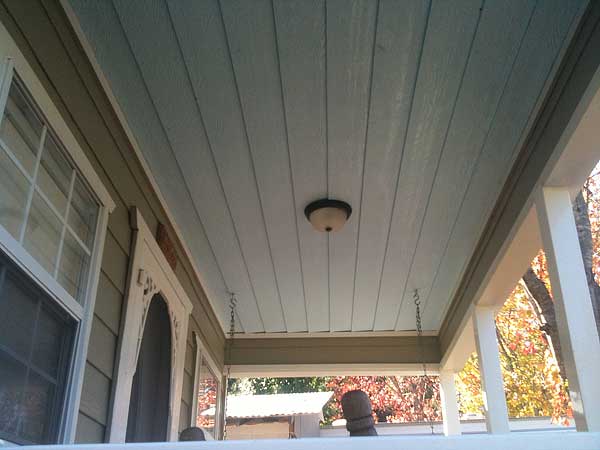

The house has a 36″ wide front door with oval frosted glass with matching vinyl screen door, second 36″ nine lite door in bedroom, have two 32″x3′ windows on porch area, two sets of 2×3 windows on each side of living area, 3×3 in bedroom, and three 2×3 windows in loft. front porch is large enough for hanging porch swing and rocking chair, also has old south charm style sky blue ceiling.

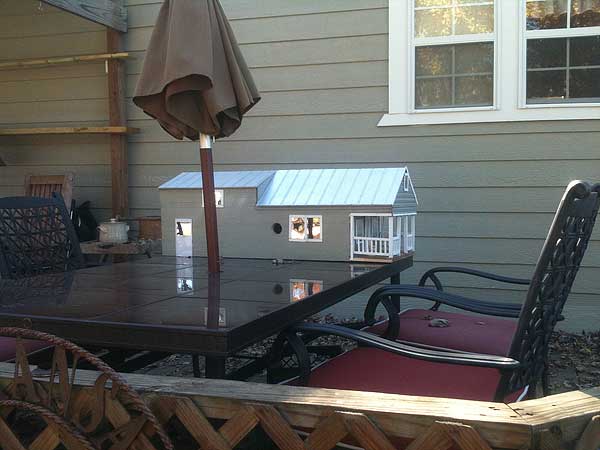

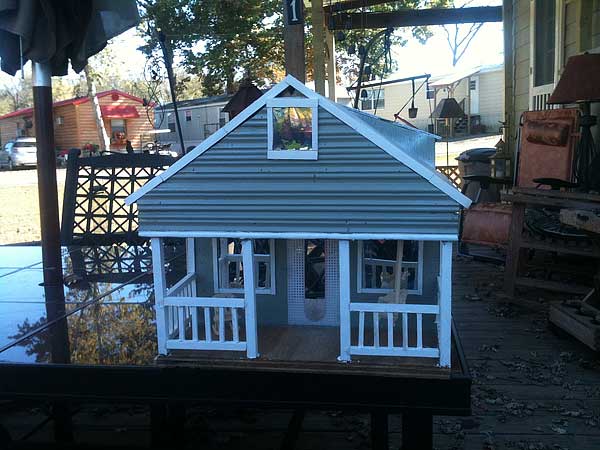

The last three pictures are of a bird house that is a to scale miniature version of the linger longer that my 13 year old daughter built for the owners.[nggallery id=29]
Modular Jasper Cabin

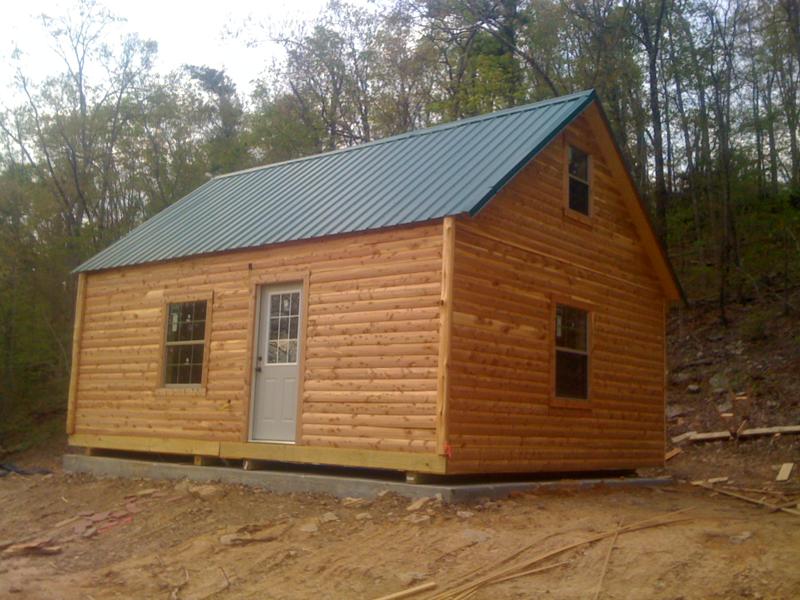

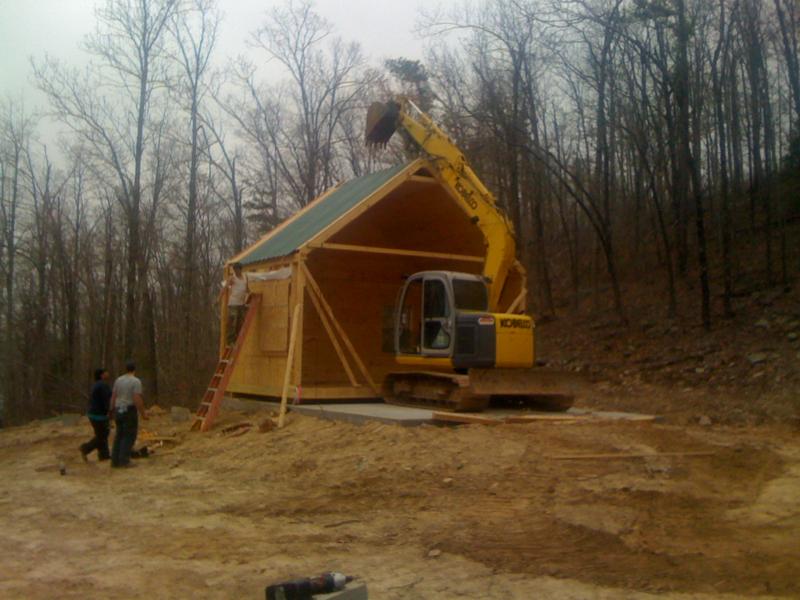

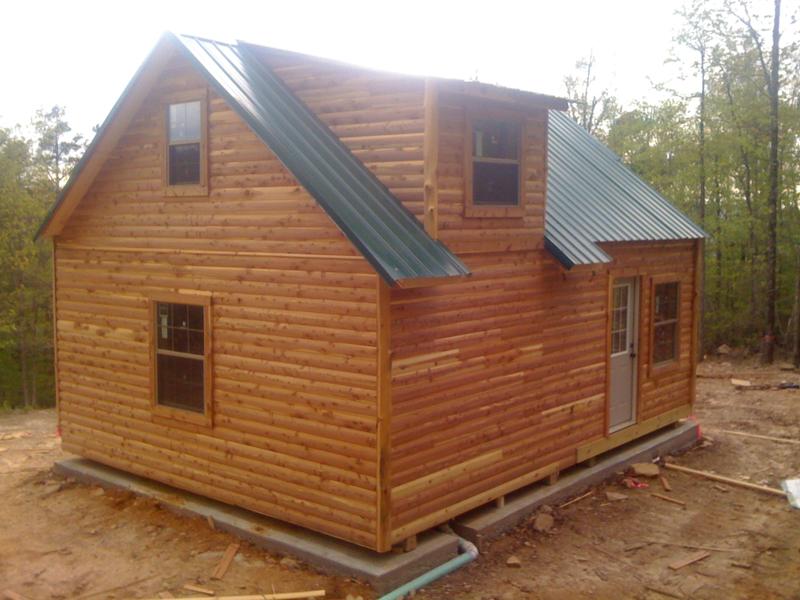

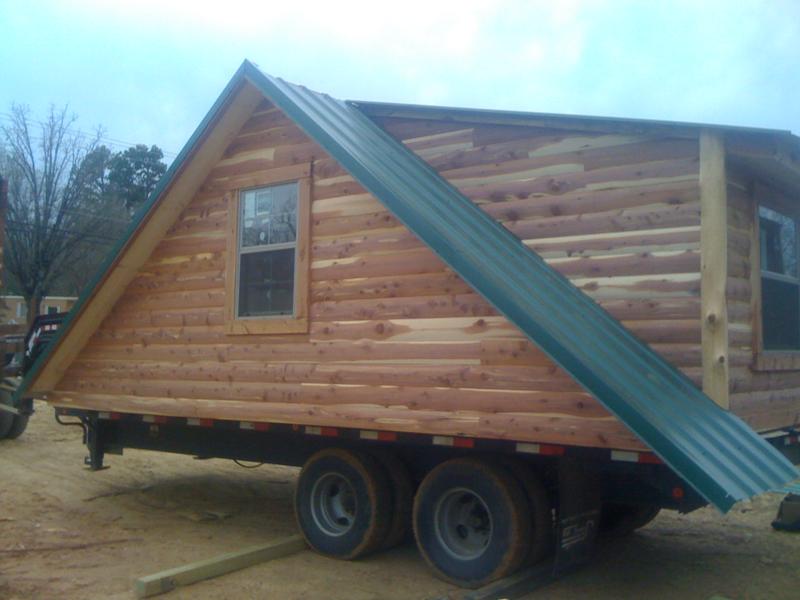

This is a modular type unit called the Jasper Cabin, this house was built in four sections that were then transported to the delivery site and re attached, it had two lower sections that were each 12′ wide and 18′ deep with two roof sections to match, once assembled the house was 24′ wide and 18′ deep with an upper level bedroom.

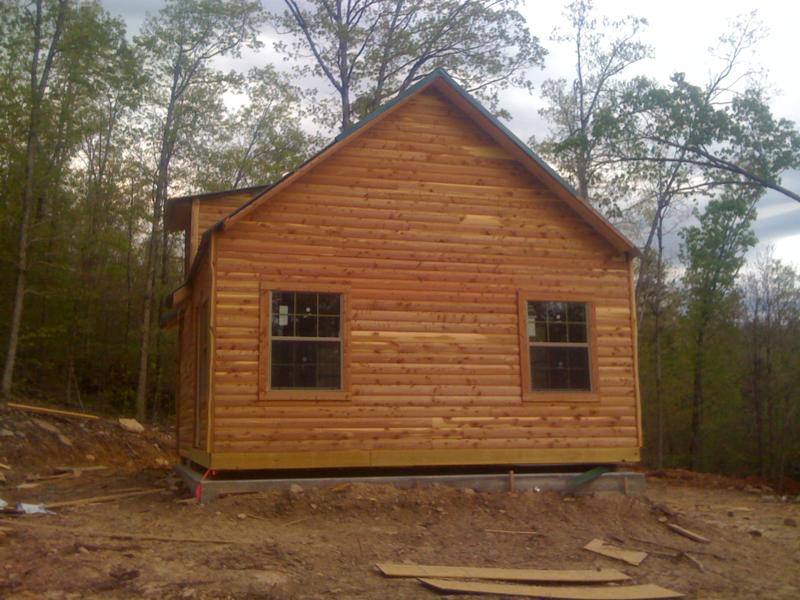

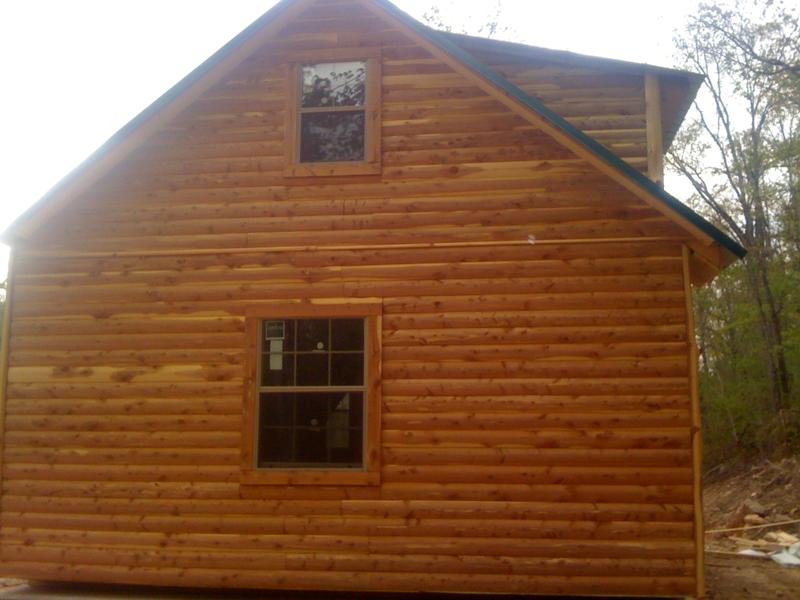

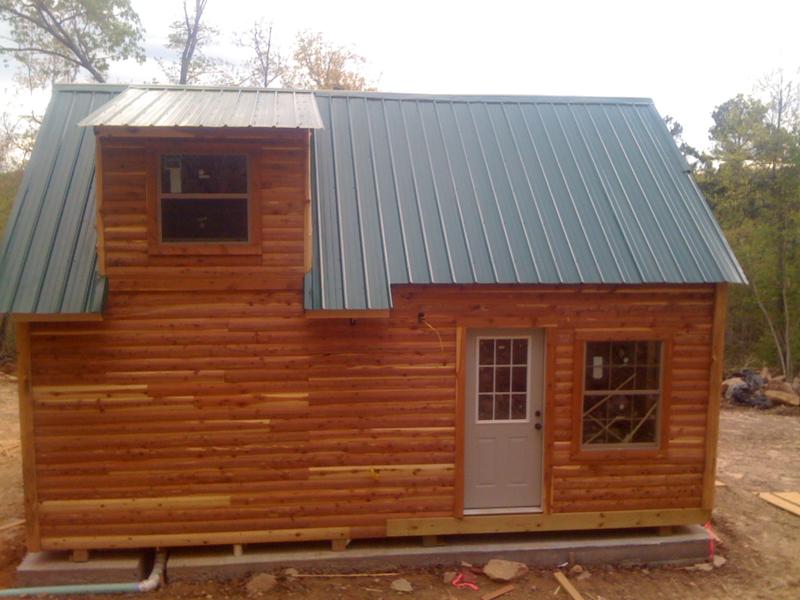

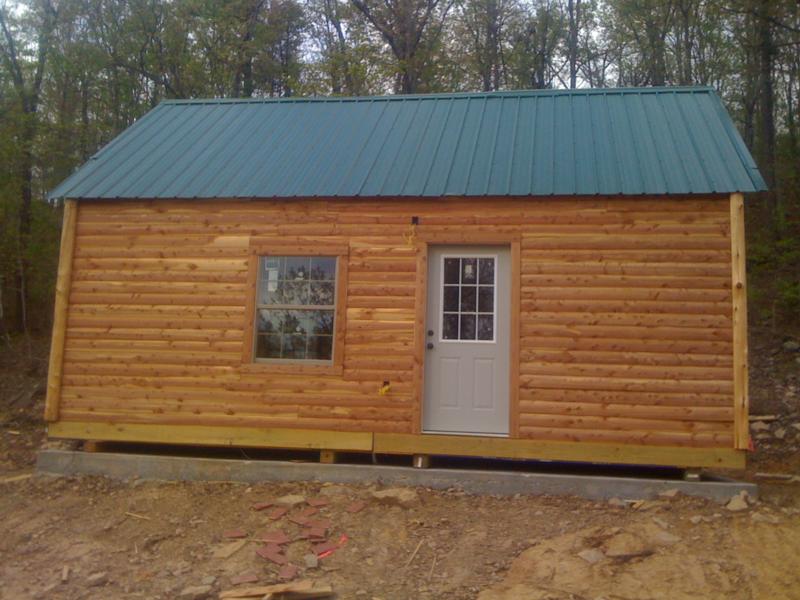

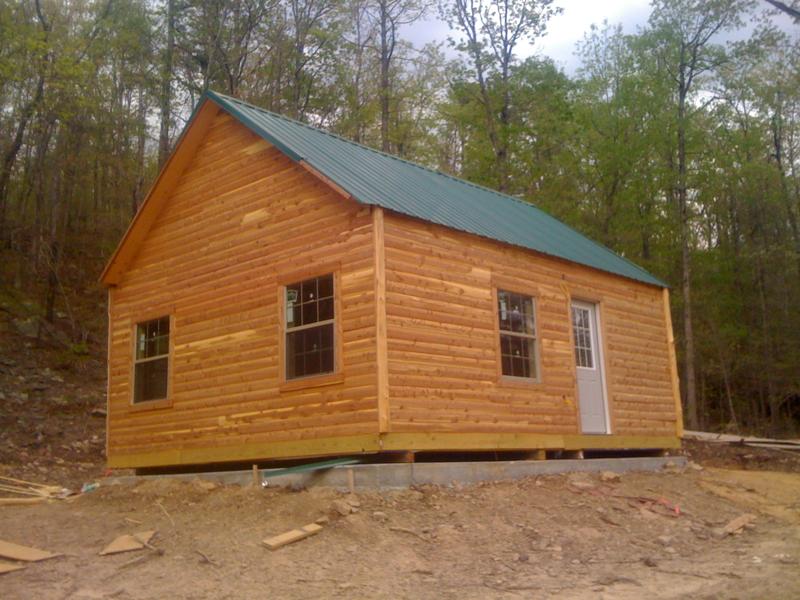

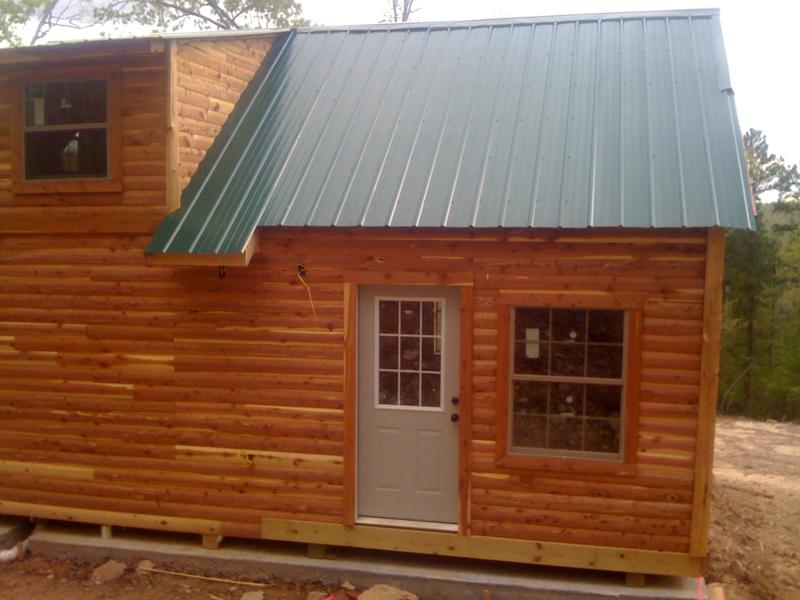

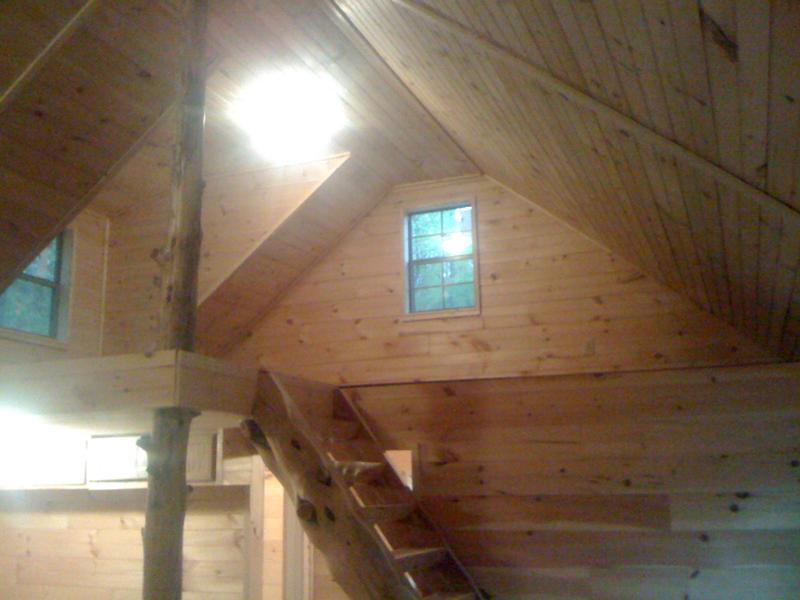

This particular house had cedar log siding on the exterior with an ivy green metal roof the layout was custom and designed by the buyer, it includes a lower level bedroom with large bunk beds. A three side wrap around covered porch was added to the house after set up.[nggallery id=28]
The Tookie House

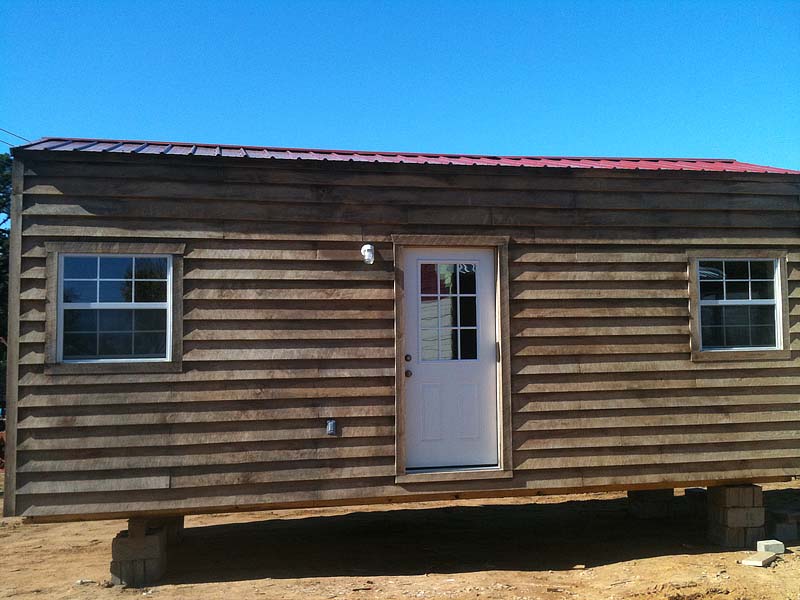

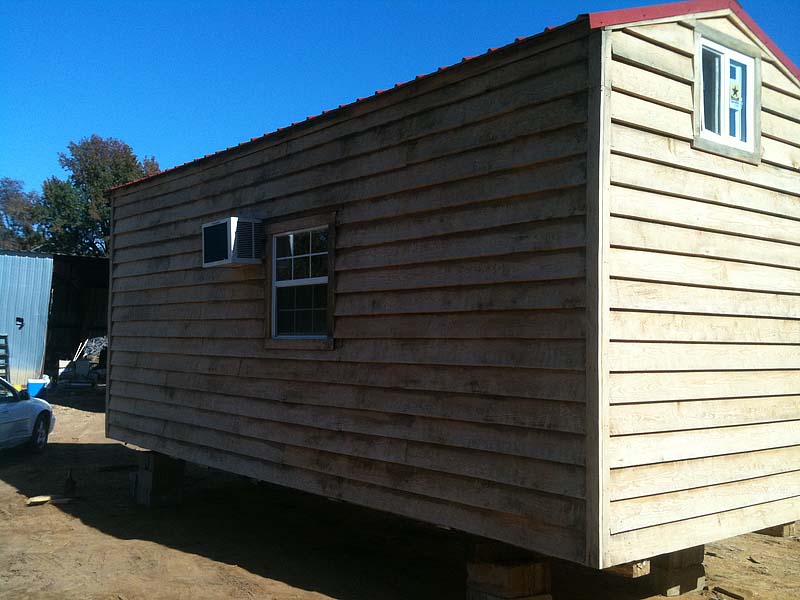

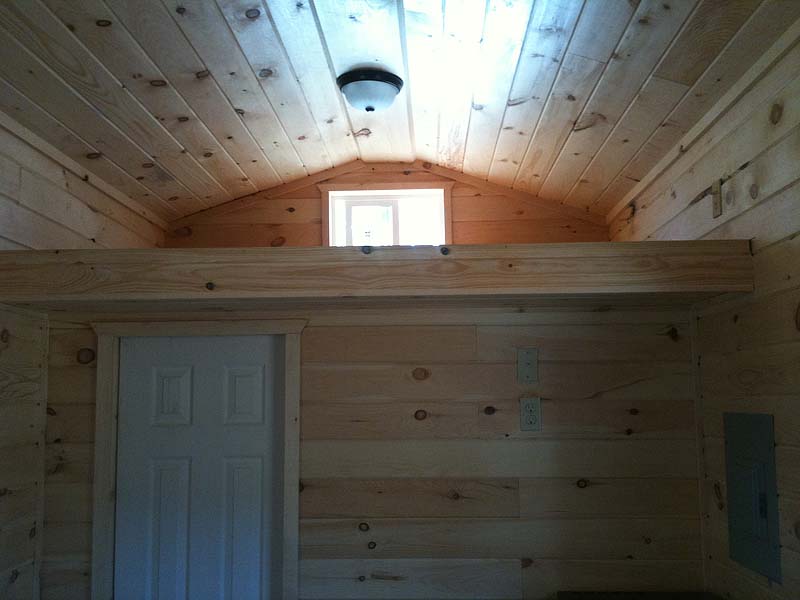

This Slabtown Customs build is an 8′ wide and 24′ long tiny house with rustic pine exterior siding installed in a lap pattern. It is built on skids instead of a trailer so is meant to be set up perm on a site but is still easily moved if needed. It’s built on treated laminated wooded skids, has 2×6 floor joists with hurricane ties, 1″ of sub floor material, full standard 2×4 framing with 9′ tall sidewalls. the 9′ sidewalls are used to gain more headroom in the two sleeping lofts this house has, with 7′ tall ceilings in the areas below the lofts this gives us almost 2′ of wall space in the loft areas before the roof starts to make is rise.

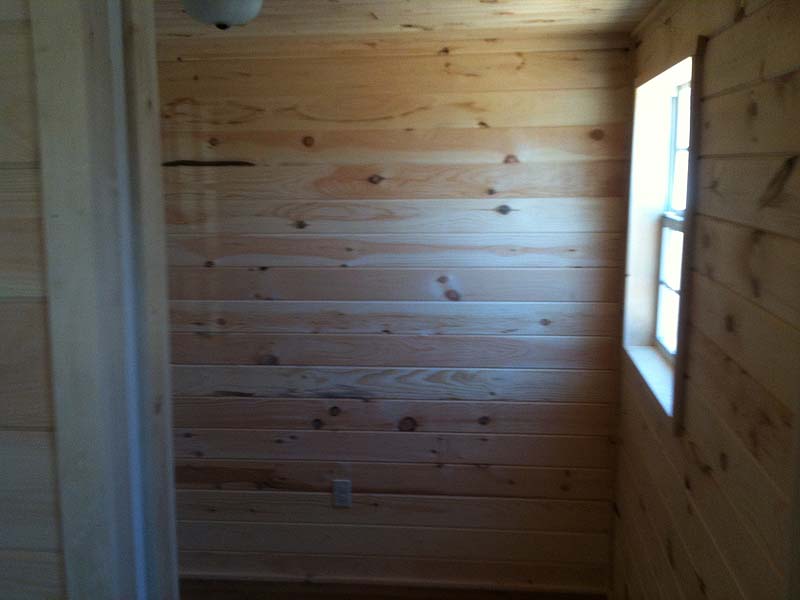

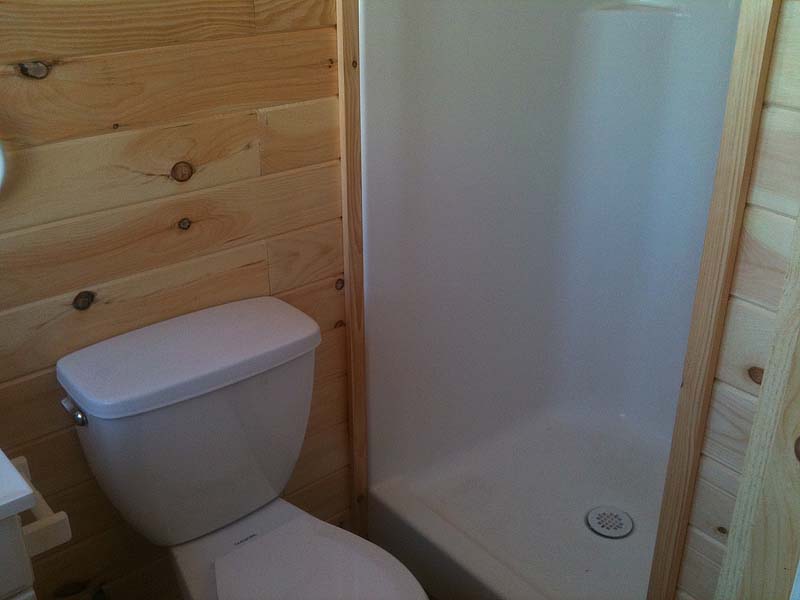

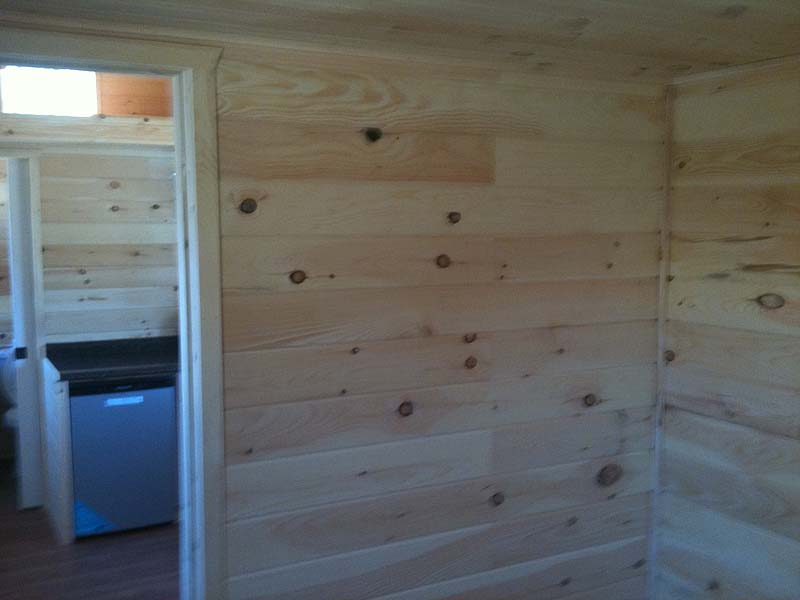

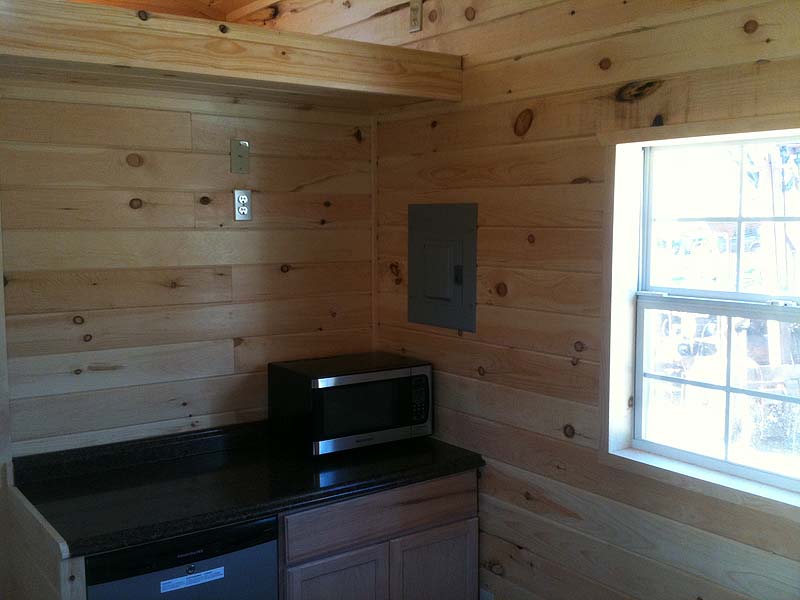

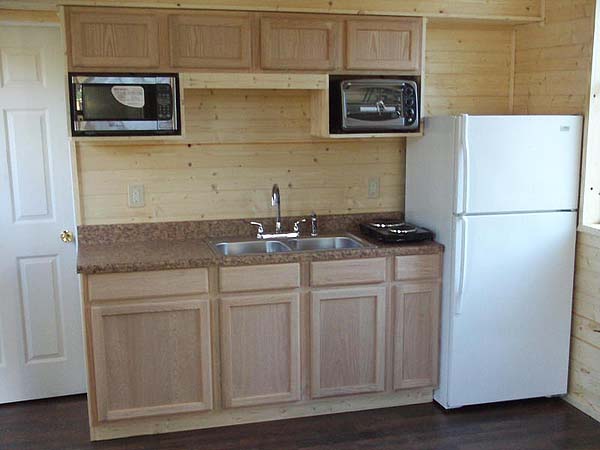

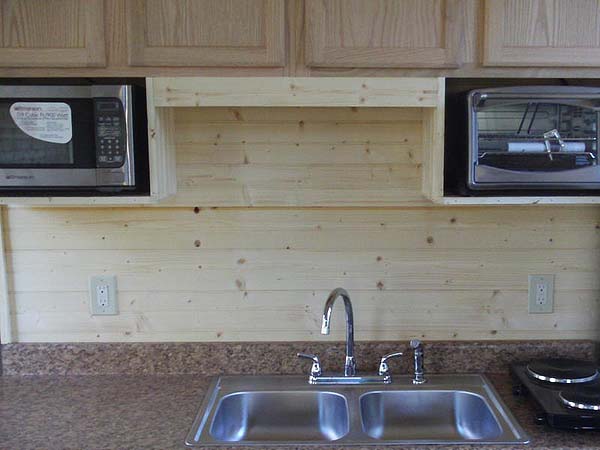

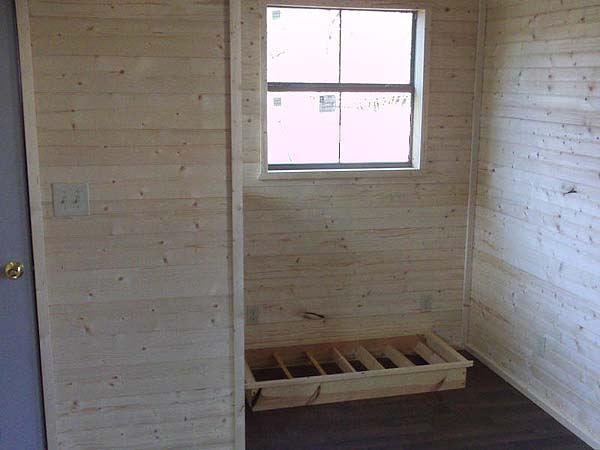

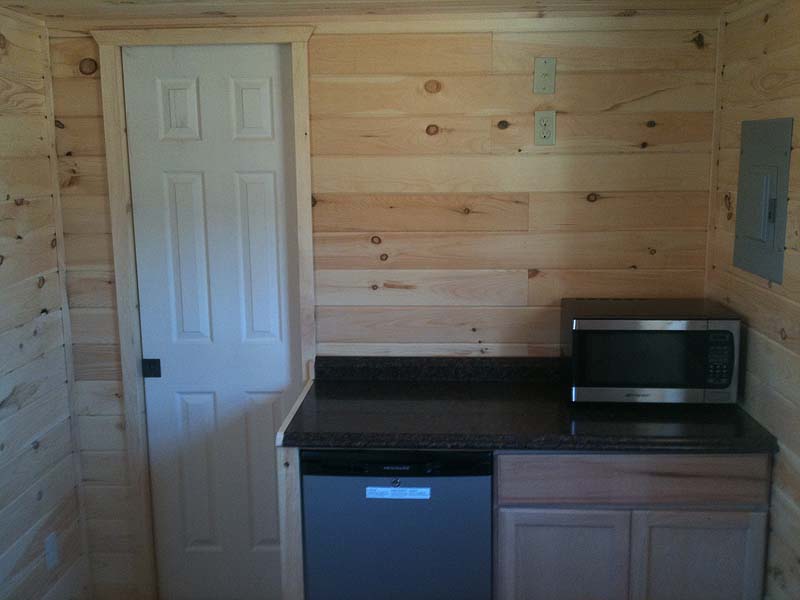

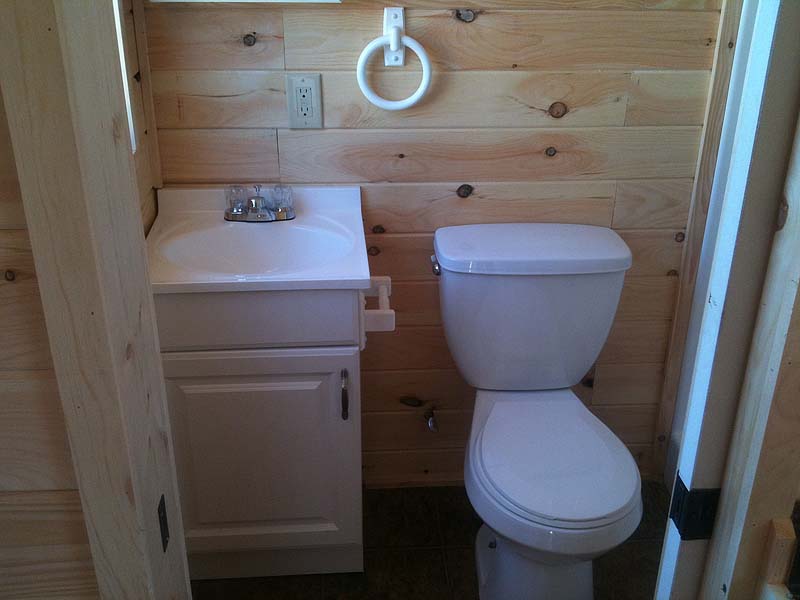

The house has an 8×8 bedroom on one end so combined with the two sleeping lofts it will accommodate several people, the bathroom is on the opposite end and includes a 3’x3′ shower stall, full size toilet and 18″ sink/vanity. This particular unit was custom built to be a rental unit much like a motel room so it doesn’t have a complete kitchen, only a dorm style fridge and a microwave along with oak base cabinets and counter top, above the countertop are electric and cable connections to allow a wall mounted flat screen TV.
As with most of our small houses it is fully wired and plumbed like a site built home but has RV type connections, its fully insulated with fiberglass in the floors, walls and ceiling.

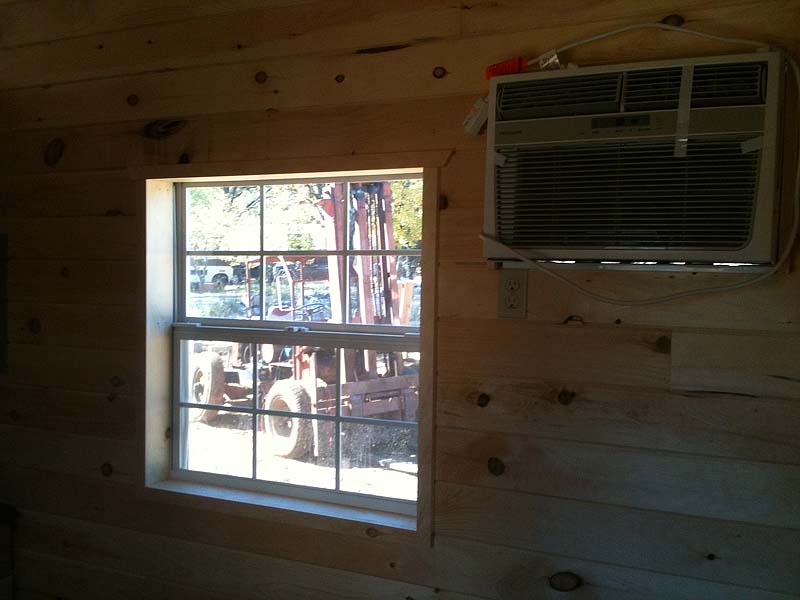

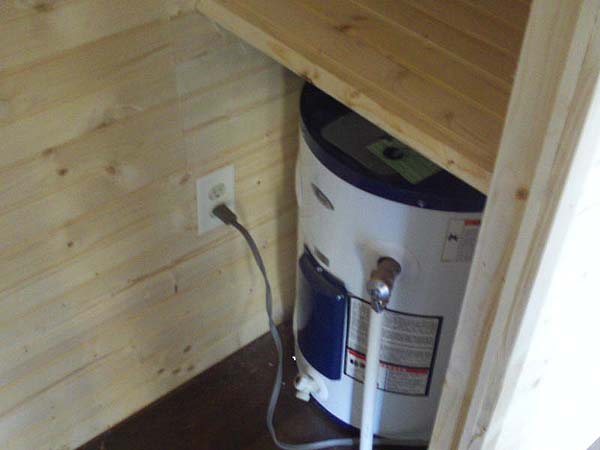

The house is completely set up for 110v service and includes a 19 gallon water heater and heat/air unit mounted in the wall. The house has a 9 lite 36″ wide entry door, 3 3×3 windows including one in the bedroom and one in the bathroom for a nice balanced exterior look, as well as one in the living room, with one 2×2 window in each loft. Although this unit does not have a complete kitchen, adding remaining needed appliances would not be a problem.
the set of pics shown in the email were taken before the ladders were installed to access the lofts but there was one in front of each loft. The bathroom and bedroom doors on this unit are pocket doors that slide into the wall so they do not create a problem with robbing space around them when opened.

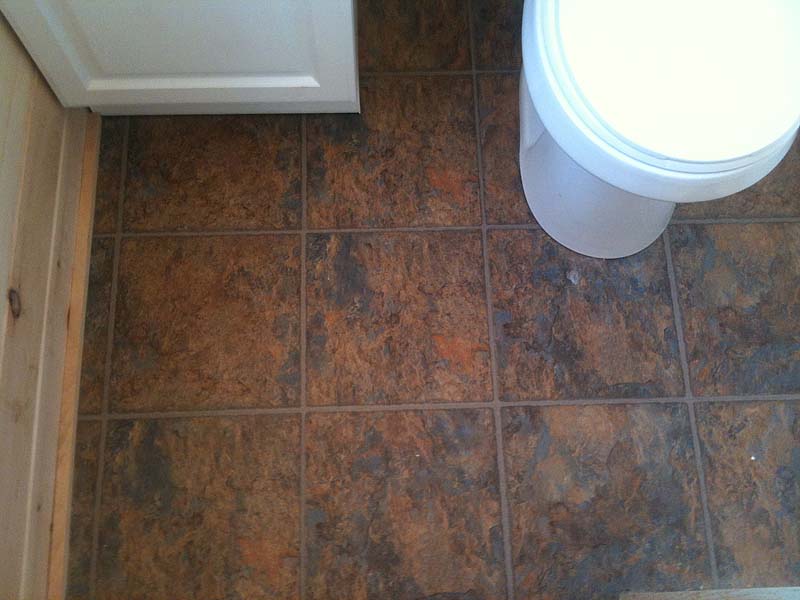

The flooring in the house is hardwood laminate with a cherry color in the main floor as well as lofts with a high grade vinyl in the bathroom.[nggallery id=27]
Annemarie Wick House

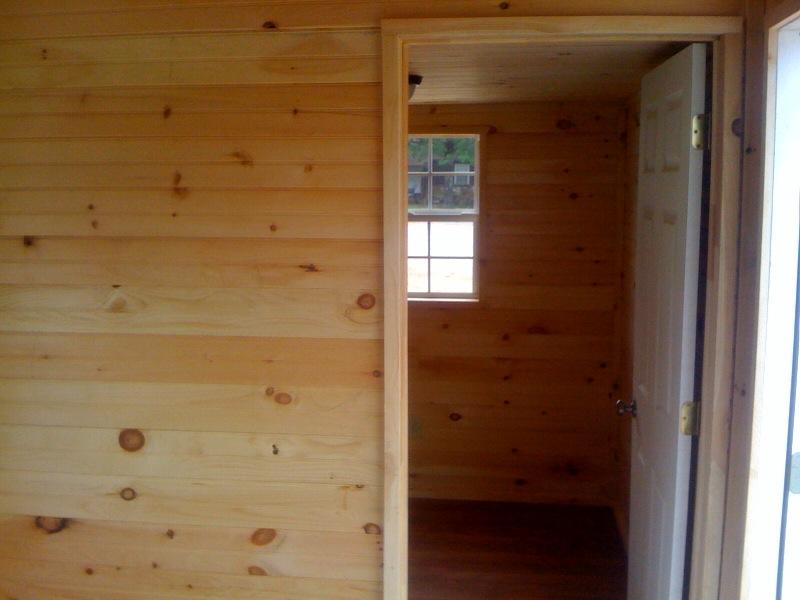

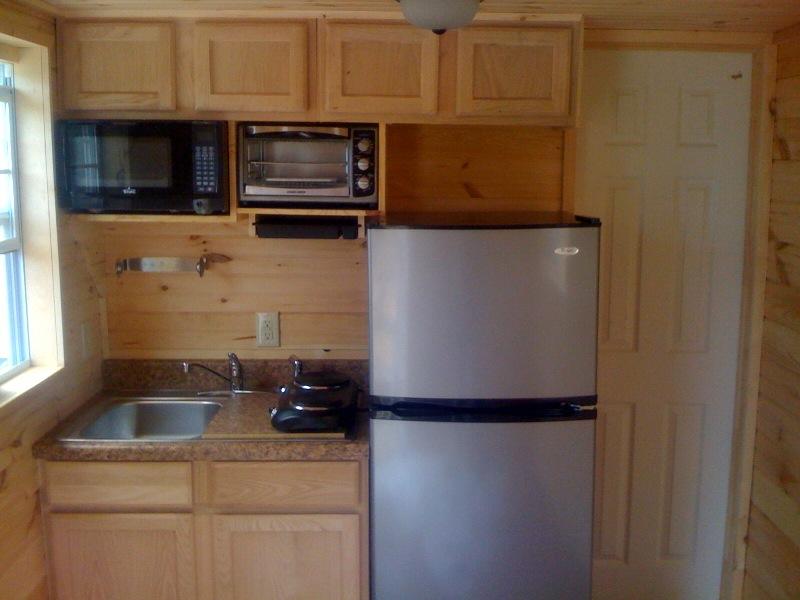

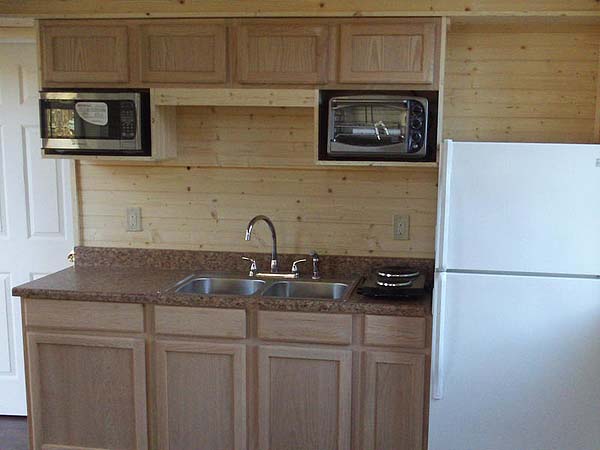

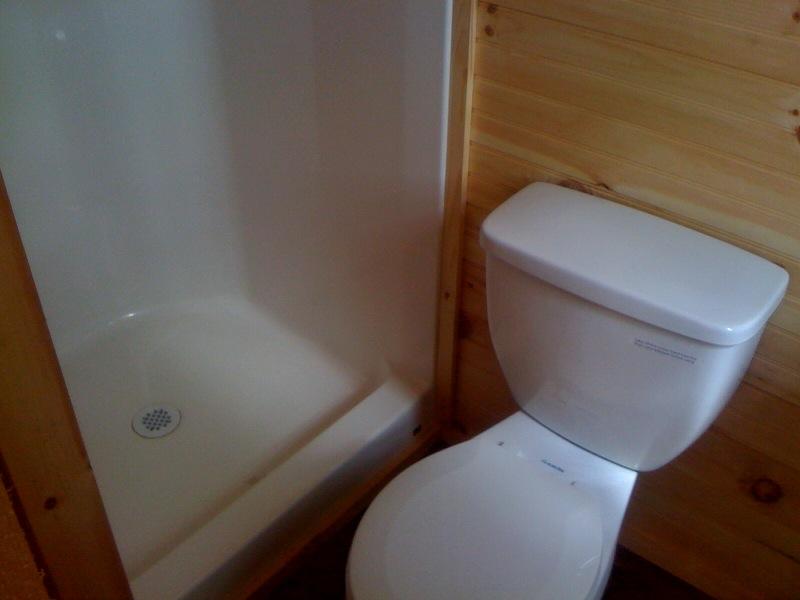

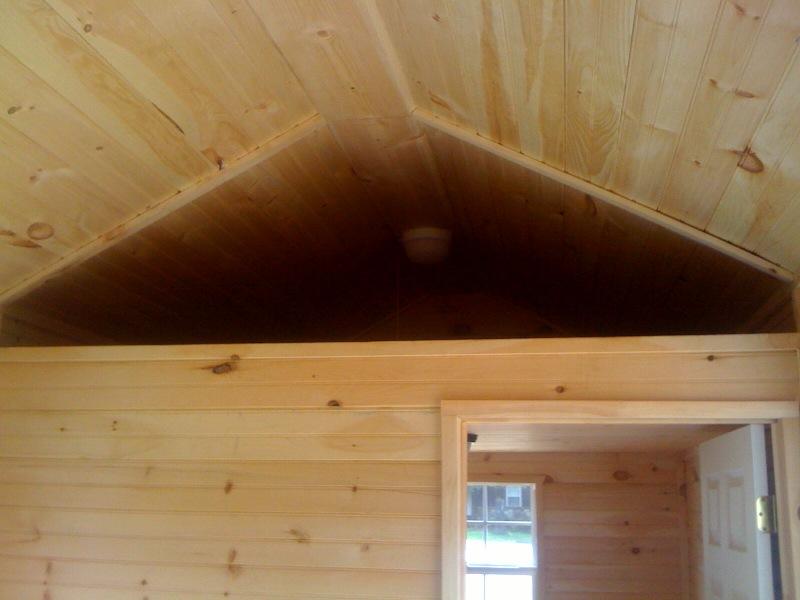

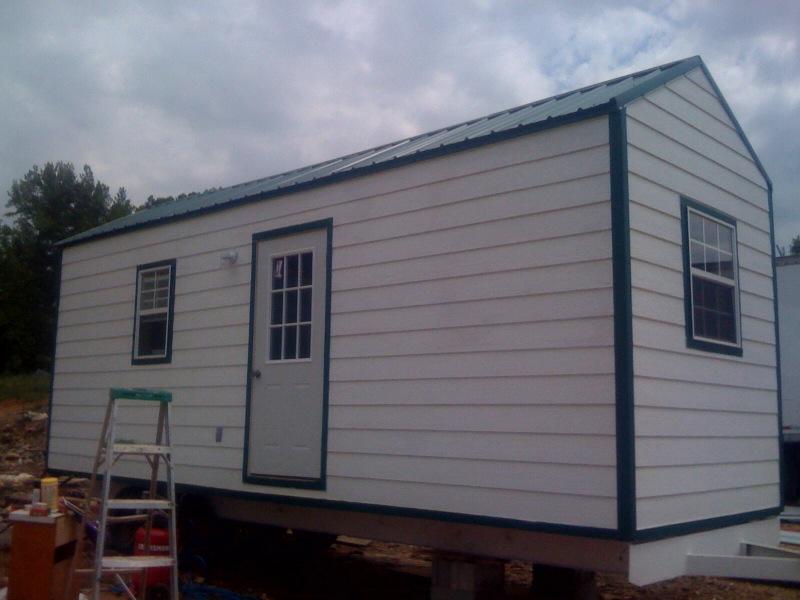

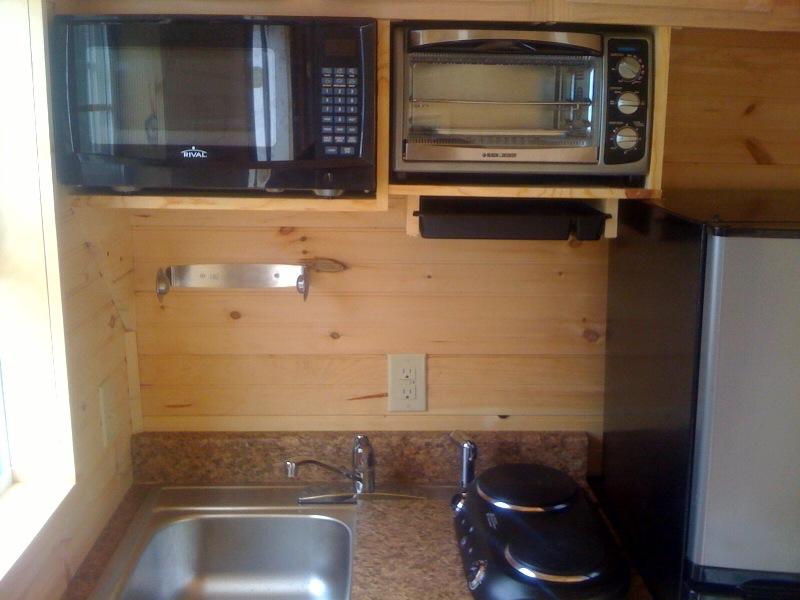

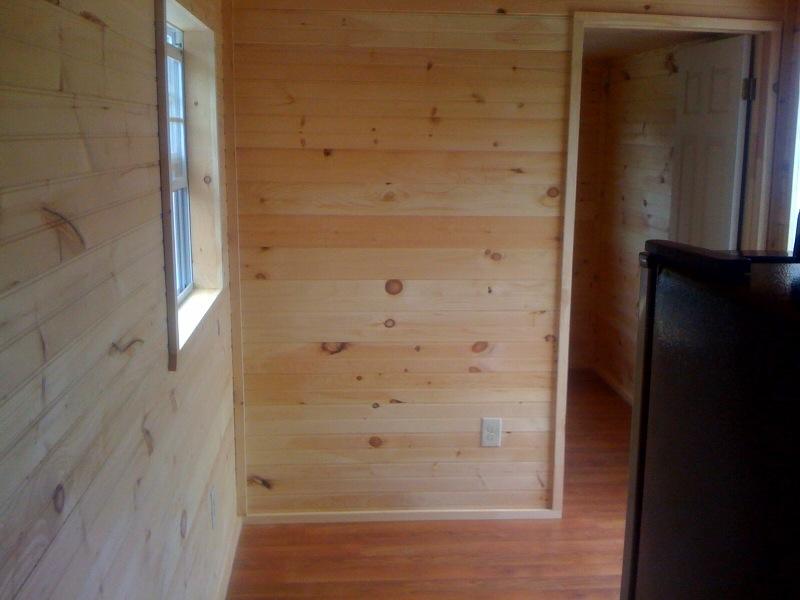

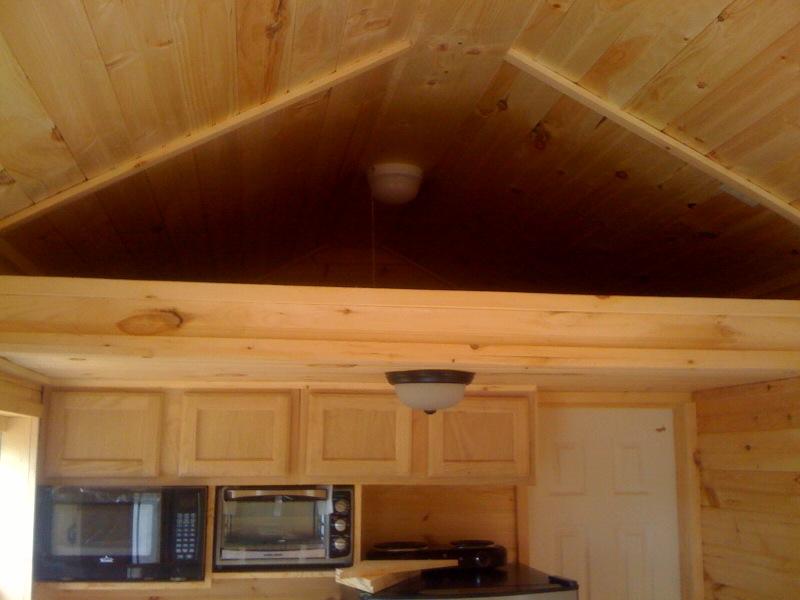

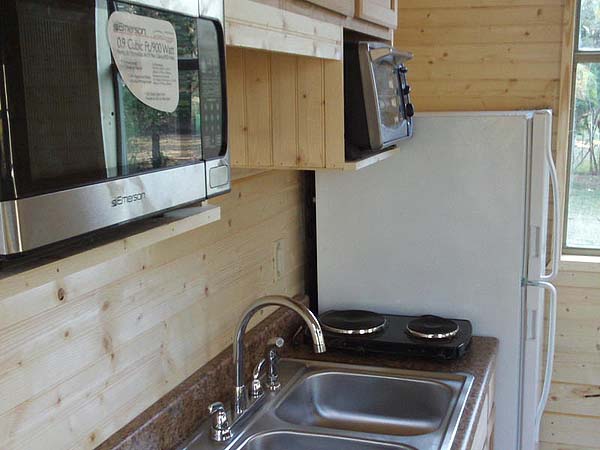

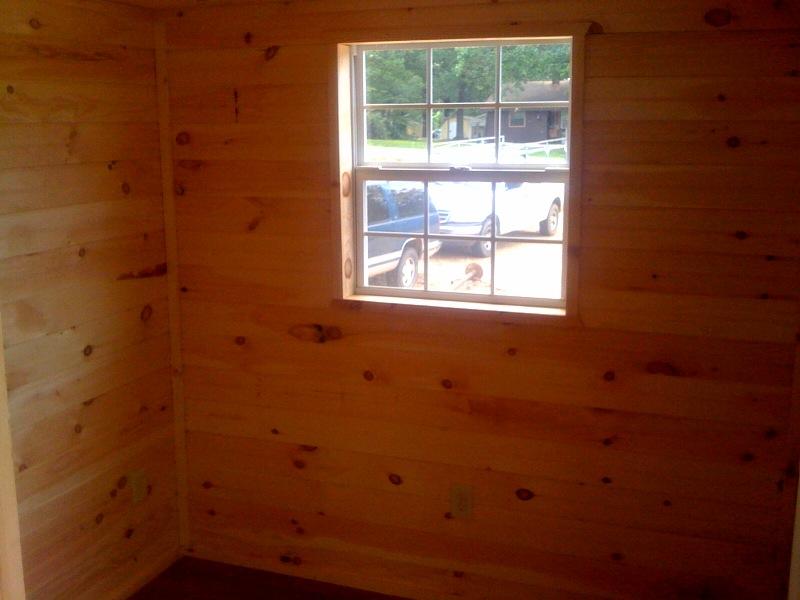

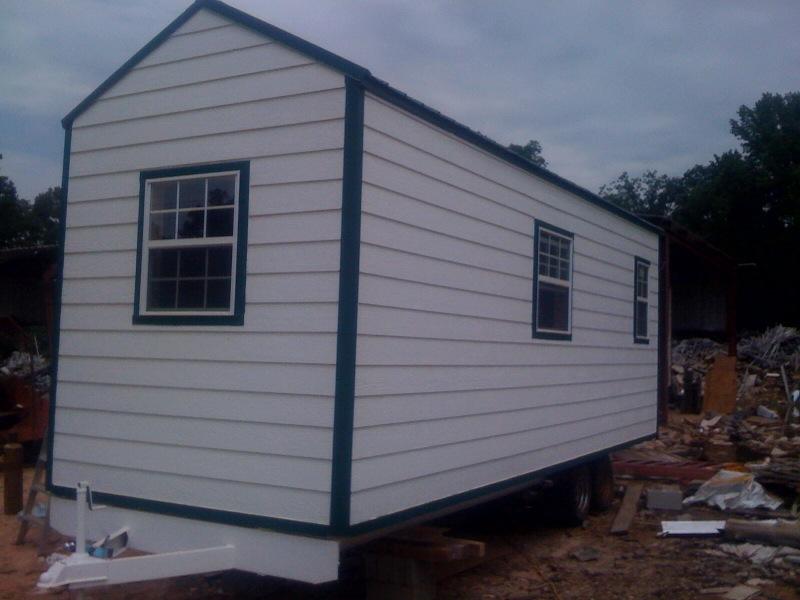

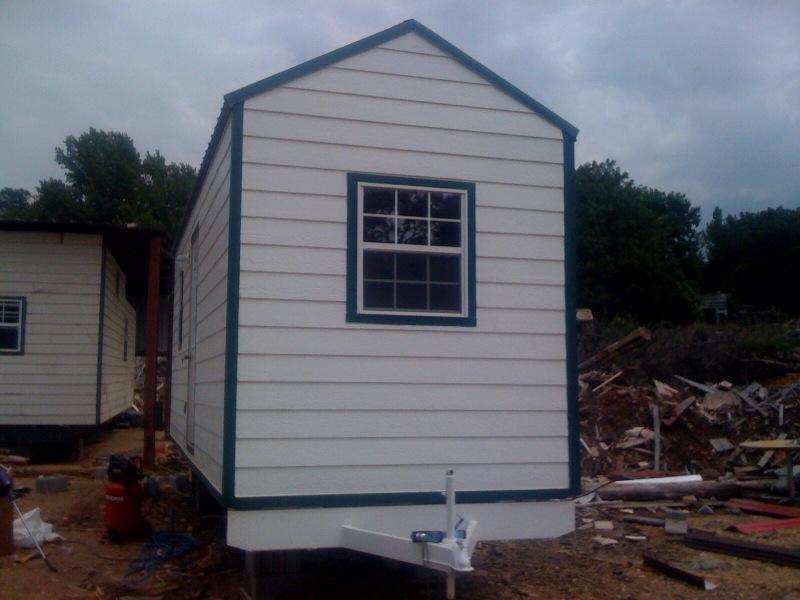

This is a custom tiny house based on our Annemarie plan, it is for a road legal size of just over 8′ wide and 24′ long and includes an 8×8 bedroom on the main floor with two 8×8 lofts above, one on each end. It has a bathroom with a 36″ shower stall, 18″ sink/vanity, full size toilet, 19 gallon water heater, double basin sink with cover for one basin, microwave, toaster/convection oven, double burner cook top, full size fridge, 3/4″ pine t&g interior walls and ceilings, hardwood laminate flooring, built permanently on a steel frame with axles and hitch, painted custom colors. This one is available for $15.000.

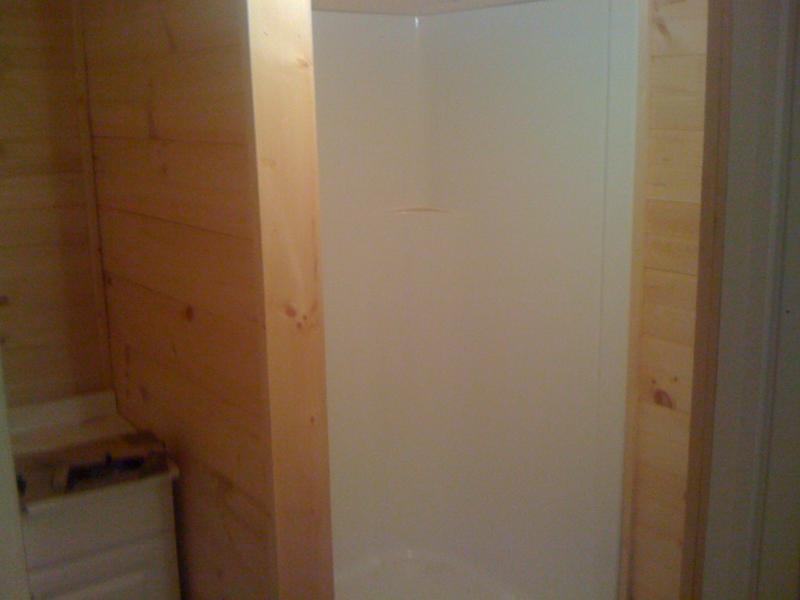

A couple of the pictures are blurry, especially the shot of the shower and adjacent shelves, sorry for that.[nggallery id=26]
Ellis Washington House – Lynda Edition

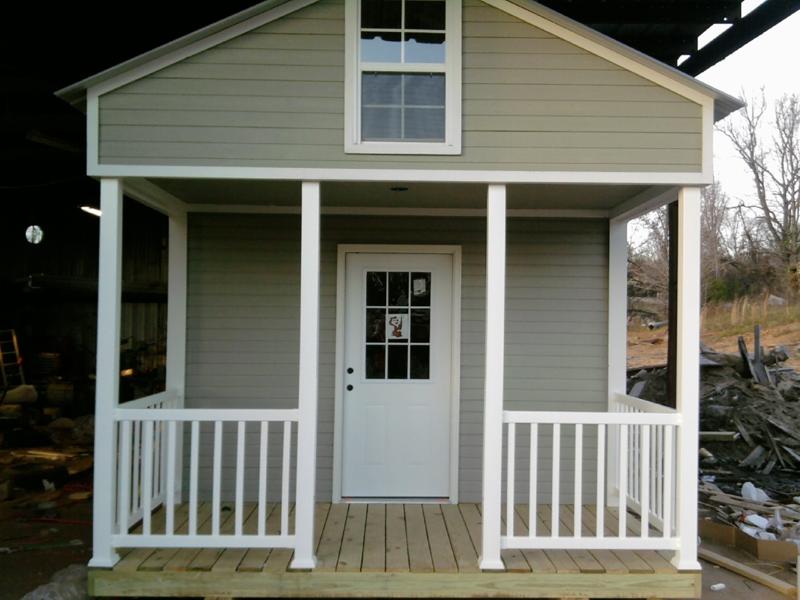

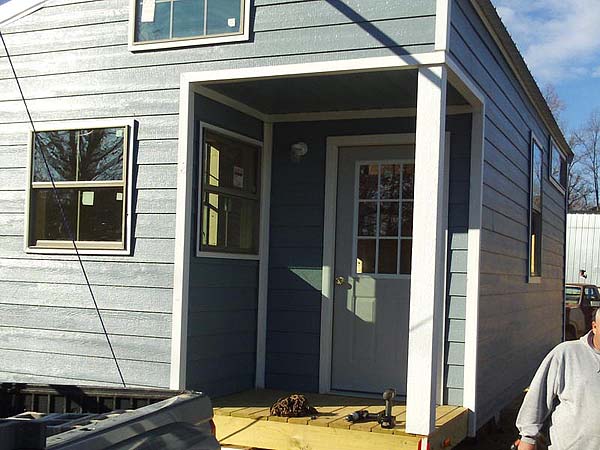

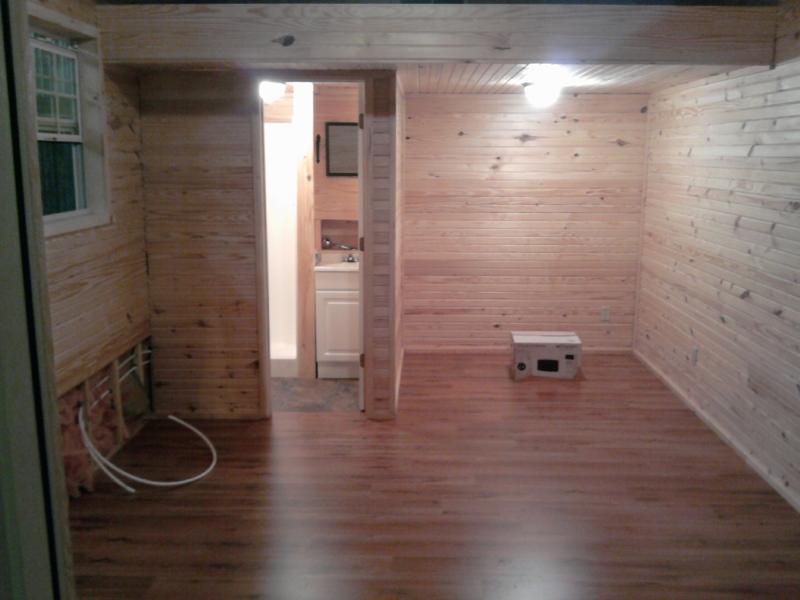

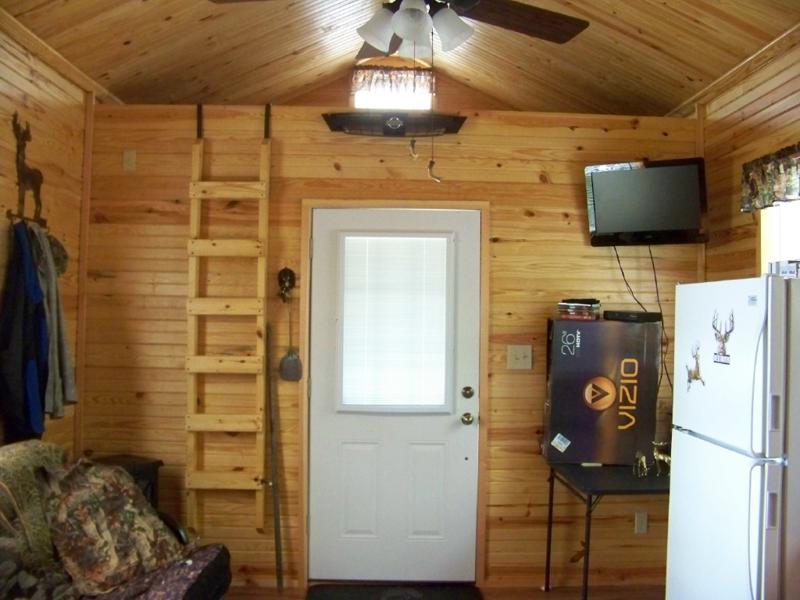

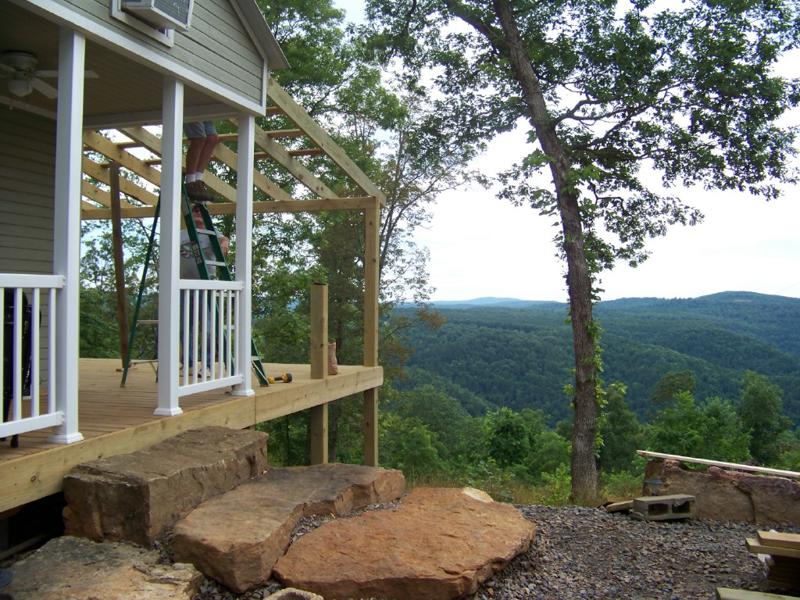

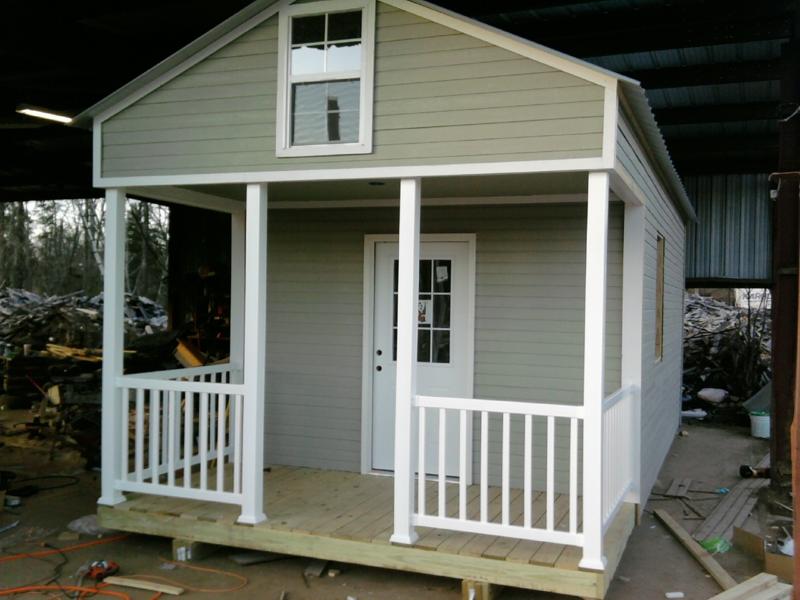

This is another version of the popular ellis washington house, it is 12′ wide, 26′ long with a custom porch, porch is only 4×6 leaving a 4×6 computer nook on the other half of the front of the house, main sleeping area is in a loft over the back 8′ of the house which is accessed through a large closet/dressing room/utility room in the back of the house. Pricing for this house is $18,000.[nggallery id=23]
Ellis Washington House, Travis Edition

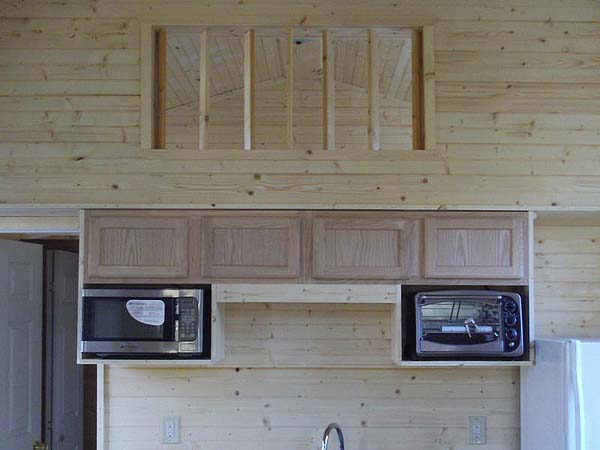

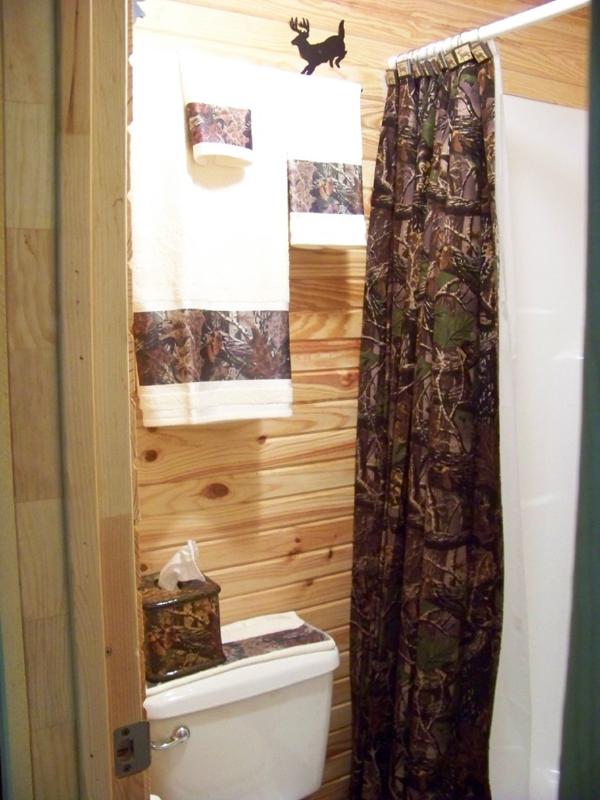

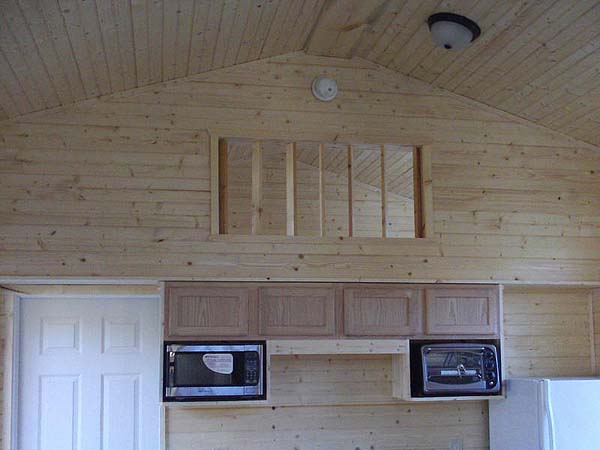

This house is a 12′ wide and 26′ long unit built on skids, with 2×8 floor joists, floor plan is attached, main sleeping loft is in the back and is 8′ deep spanning the full 12′ width, bathroom has tub, the buyer installed ceramic tile on the walls around the tub after delivery, house has a large closet along with washer and dryer, loft entrance is in the closet area, there is also a small loft above the front porch area, the window type opening in the loft above the kitchen has a removable custom frame with slats to soften the large opening, it was out at the time of the pics, this was done in order to make getting large items into and out of the loft.[nggallery id=24]

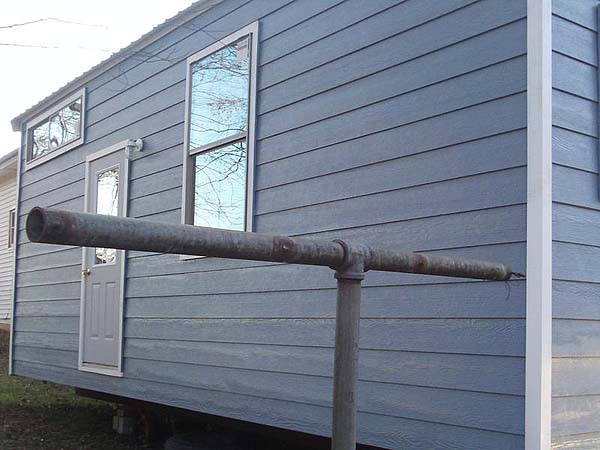

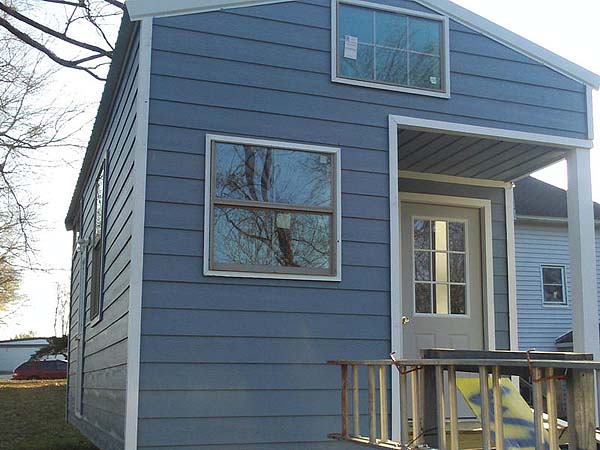

The Slabtown Cube is for sale at a ridiculous price of $8500 as it sits on Scott’s yard through Monday, December 12, if Scott still owns it by Tuesday morning it will be set up and will be available for rent at $75 per night with a two night minimum, set up and available here in Mountain View, AR.
Ellis Washington Studio Cabin

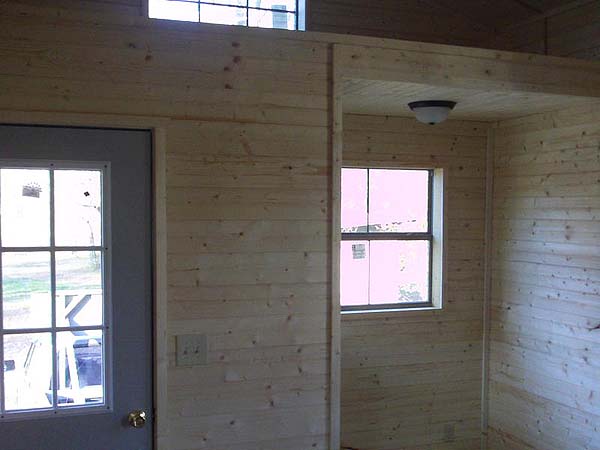

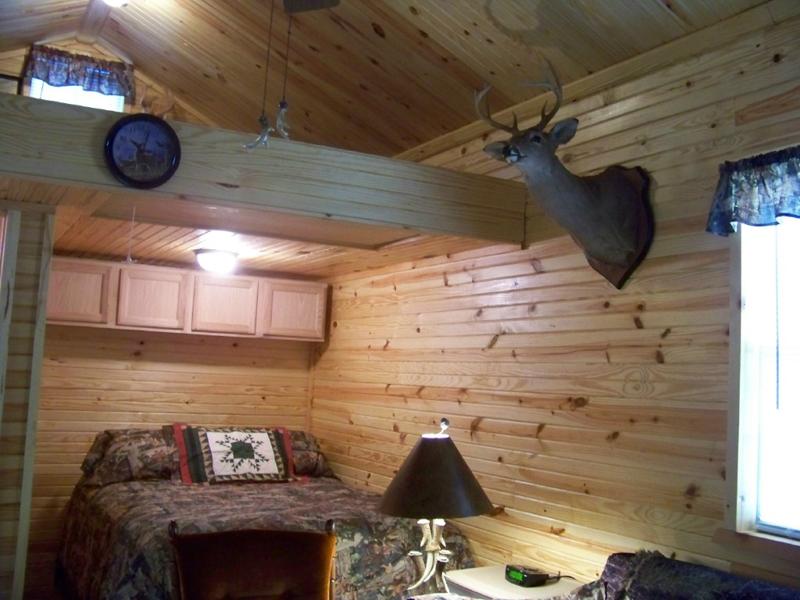

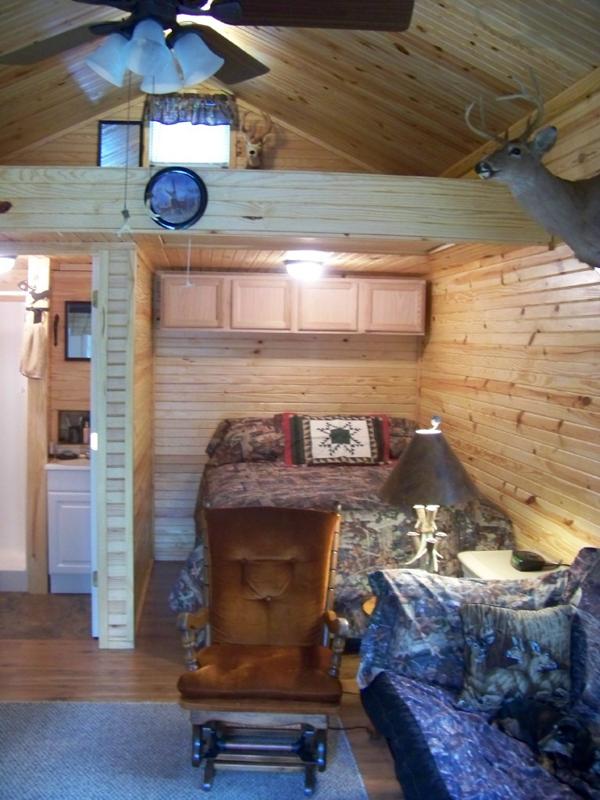

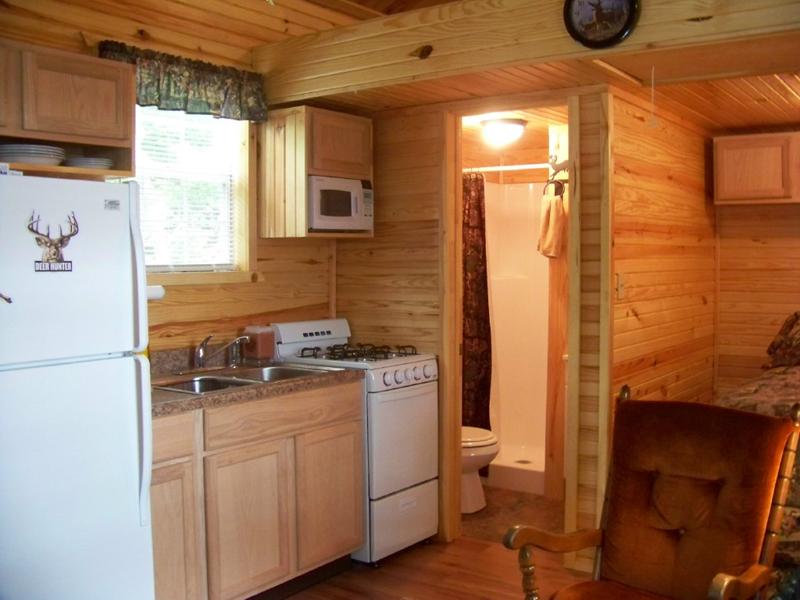

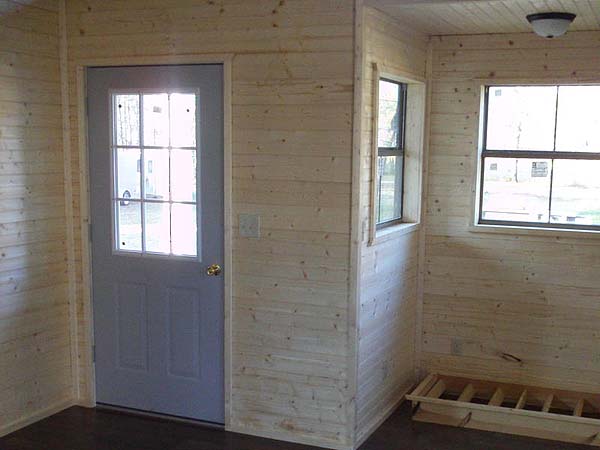

The Ellis Washington Studio Cabin is a 12′ wide and 26′ long studio cabin with 6′ front covered porch leaving a 12×20 main cabin, this unit was extra tall with two lofts, one over the porch and one over the bathroom and bed area, this units original floor plan had the kitchen area located where the bed is now in the pics, buyer wanted the kitchen moved to present location to allow placement of bed on lower level. In a reproduction of this model the height will not be this tall, we can still however add a loft, its actual height will depend on delivery location and travel route.
The kitchen can be placed either as in the pics or as in original plan.[nggallery id=25]
Tiny log cabin style house built on trailer, full bath, kitchen, washer/dryer, two lofts, hardwood flooring, pine log siding, 10′ wide and 22′ long For sale at $16,000.
Contact Scott Stewart at Slabtown Customs for more information.
