Louisiana Cabin By The Lake

Our idea began to take form in late 2008 when we saw the attractive little dwellings in the TinyHouseBlog.com Web site. We especially liked the houses with wood paneled walls. Not long after, while driving down the Interstate, we noticed a beautiful cabin for sale in a portable building sales lot. These portable buildings were actually “high-end” tool sheds, pre-built, available in many sizes and delivered to your site as a giant rigid box.

We had recently purchased a 75′ X 180′ lot in a subdivision near New Orleans and we wanted to put our building there. We chose a structure measuring 14′ X 24′ with a loft at each end. The floors are constructed with 2 X 6’s which give the building a very solid feel. It weighs 7,600 pounds and sold for about $8,000 (about a dollar a pound). The price included delivery and tie down.

The building has been delivered to the site and placed on blocks and leveled.

The building has been delivered to the site and placed on blocks and leveled.

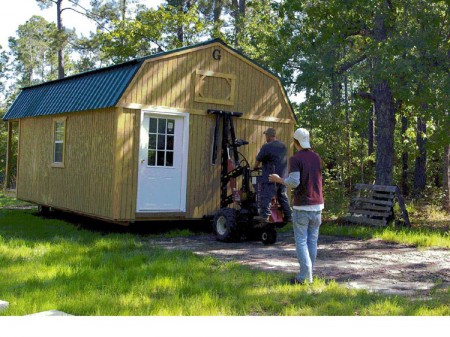

The delivery guys use something called a "mule" to wheel the portable building into place.

The delivery guys use something called a "mule" to wheel the portable building into place.

I felt I had the necessary skills to complete the inside of the dwelling but I wasn’t sure about getting the proper permits as required by Saint Tammany Parish (Louisiana) law. We were uneasy when we first walked into the lobby of the Parish Governmental Complex. Our anxiety was only heightened when we saw a mannequin sitting in the lobby for reasons unknown. I wanted to be a “self contractor” for this project but was fearful that the building permit staff would be quick to turn me away if I said anything wrong at all. At first they seemed disdainful of my plan to build a 340 square foot “home.” The whole project seemed to be nearly impossible to do according to code standards but without a permit we couldn’t even turn on the electricity. I knew that building codes are the law and that regardless of the staff’s outlook or my concerns, our structure would have to conform to those standards. In order to build rapport and credibility with staff, I started visiting regularly and was always polite. Before long, I was able to consult with the chief building official.

I learned that in Louisiana (because of Hurricane Katrina) every structure has to be certified by a licensed Louisiana professional engineer that it is able to withstand 130 MPH winds. The business that sold us our cabin provided this document for free. It had the necessary engineer’s red stamp on the plans to certify that my building could withstand the 130 MPH wind load. However, this structural rating is not complete without a Louisiana licensed architect’s seal to define how the foundation is to be built. The foundation design must be specific to the particular building and lot. This process turned out to be far easier that I had expected. I made an appointment with an architect who had done many of these drawings for sheds. For $300 he made a quick drawing of the precast concrete pads, blocks and tie down anchors. He completed the drawing in about thirty minutes. Best of all, the Parish was happy with his drawing and issued my building permit.

The parish issues a poster sized placard where you affix stickers as you pass each stage of the process.

The parish issues a poster sized placard where you affix stickers as you pass each stage of the process.

The Parish building permit (application) fees were reasonable. They totaled $246. However, the survey fees were considerably higher. Three different surveys are required including a boundary survey, topographical survey and elevation certificate. These totaled $800.

The permit process is a series of steps in four different areas spanning nine different inspections. The four areas are electrical, plumbing, frame and drainage. In each area there is usually a preliminary inspection and a final inspection. For example, with frame, the inspectors need to have the walls open so that they inspect the required hurricane clips and insulation. Since the code demands R-30 in the attic, I had to butt 2 X 6’s up to the 2 X 4’s to give the 10″ thickness needed for the R-30 to fit next to the ceiling. (See picture)

Often, three inspections can be performed during one visit and you don’t necessarily need to be present during the inspection. For example, you can leave the door unlocked for the inspectors that morning. They can come in during the day, make the inspection and leave the green tag if you pass.

The empty cabin is just a shell waiting to be modified into a dwelling.

The empty cabin is just a shell waiting to be modified into a dwelling.

For my electric service, I used an underground feed from the utility pole buried 18″ deep with 100 amp service. One of the best decisions I made was hiring a licensed electrician and he was wonderful. Once he came on board, he served as my advisor to guide me through the numerous details the Parish would be inspecting. For example, the code requires hard-wired smoke detectors and the shower must have a light in it. The electrician knew all of this. Even better, he had knowledge in all the other trades and knew the inspectors. Without his professional skills and expertise, the process would have been much more difficult. I tipped him in addition to his fee because he kept me out of trouble.

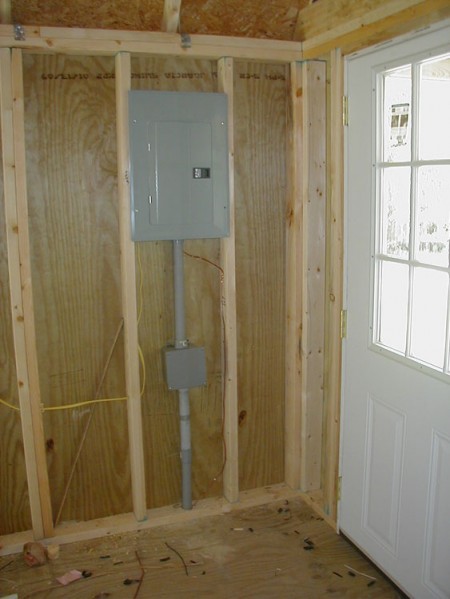

The electrical box for the 100 amp service has been "roughed in."

The electrical box for the 100 amp service has been "roughed in."

Another item needing careful attention included plumbing vents. These must vent above the roof ridge line. All of them must be “dry vents” so they breathe properly and allow the toilet to flush correctly. In the areas of water and sewer services, my particular subdivision has a community water and sewage utility. This saved me plenty of grief because otherwise I would have had to deal with another set of local requirements pertaining to all that.

The plumbing has been roughed in with the vents as required.

The plumbing has been roughed in with the vents as required.

The building permit was issued in April 2009. Our Certificate of Occupancy was issued in August. The whole project cost about $20,000: $2000 electrical, $3000 plumbing, $8000 cabin shell, $5000 materials, $2000 various fees and miscellaneous.

The entire effort shows that “smaller” does not necessarily mean “simpler” in terms of getting a project done the right way. We wanted our “Tiny House” to be a true home and not just a glorified tool shed. We wanted it to free of the potentially life-threatening hazards that can accompany poor site preparation and unstable construction, dangerous electrical wiring and shoddy plumbing. With the help of a few professionals, our own “sweat equity” and a positive approach to meeting local building code requirements, we have achieved our goal. We are very pleased with the final product. Please check out the various pictures of our project.

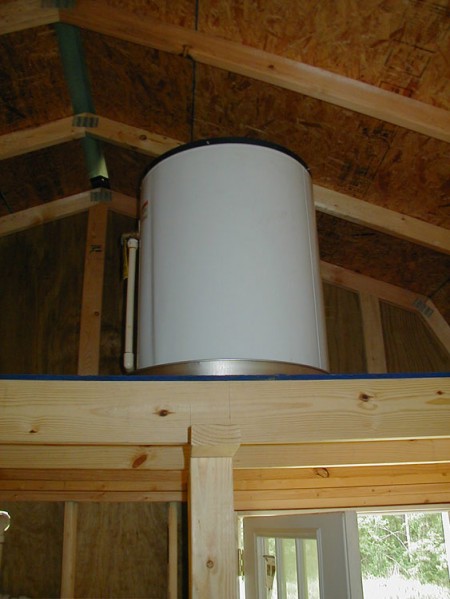

The 30 gallon hot water tank was placed up in one of the loft areas.

The 30 gallon hot water tank was placed up in one of the loft areas.

The R-30 insulation requires about 10 inches of clearance so you have to "add to" the 3 1/2 inches of 2X4 rafters to increase their depth to almost 10 inches to make room for the thick insulation sheets.

The R-30 insulation requires about 10 inches of clearance so you have to "add to" the 3 1/2 inches of 2X4 rafters to increase their depth to almost 10 inches to make room for the thick insulation sheets.

The wood paneling is slightly flexible and it can form an arch at the peak of the ceiling to eliminate a seam.

The wood paneling is slightly flexible and it can form an arch at the peak of the ceiling to eliminate a seam.

A temporary scaffolding was used to give workers the ability to reach high enough to do their insulation and paneling work on the ceiling.

A temporary scaffolding was used to give workers the ability to reach high enough to do their insulation and paneling work on the ceiling.

The parish requires R-13 underneath the floor. Notice the steel wire "Tiger Teeth" that easily hold the insulation in place. You should not have a vapor barrier here because moisture might accumulate above it. So just tear off the vapor barrier so it can breathe.

The parish requires R-13 underneath the floor. Notice the steel wire "Tiger Teeth" that easily hold the insulation in place. You should not have a vapor barrier here because moisture might accumulate above it. So just tear off the vapor barrier so it can breathe.

A small kitchenette has been added.

A small kitchenette has been added.

by Bill Northup for the (Tiny House Blog)
